General Configuration

Settings Overview

Use the Settings menus of the ManageIQ user interface to view or modify the global configuration of your appliance.

Settings

To view or modify global settings for your appliance, click Settings > My Settings to modify. The availability of each menu item depends on the role assigned to your user account. For more information on roles, see Roles.

The following menu items are available from the settings menu:

  • My Settings

    This menu is available to all ManageIQ users. The settings in this menu control how elements in the user interface are displayed, time profiles, and tags for the currently logged-in individual user.

  • Tasks

    This menu allows you to view virtual machine SmartState Analysis tasks that can be tracked through the console. The status of each task is displayed, including time started, time ended, what part of the task is currently running, and any errors encountered.

Application Settings

The Application Settings menu is now accessible from Settings > Application Settings from the user interface.

This menu allows you to specify enterprise, region, zone, and server settings for your ManageIQ infrastructure. Diagnostics such as logs and the status of processes are also shown here.

My Settings

The options under the My Settings menu allow you to configure user interface display options specific to the user account with which you log in to ManageIQ, such as the default view displayed on login, and personal tags. You can also configure the color scheme, and button options on the main dashboard.

These options are available by clicking Settings > My Settings.

Visual Settings

The options under the Visual menu allow you to configure how user interface elements are displayed in the web user interface. For all options, click Save to update the settings, or click Reset to undo any unsaved changes that have been made on the current screen.

Grid and Tile Icons

This group of settings is used to control the view of your virtual thumbnails. Each thumbnail can be viewed as a single icon or as an icon with four quadrants. Use the quadrant view to see a component’s properties at a glance.

Use the following procedure to change grid and tile icons:

  1. From the Settings menu, browse to My Settings, then click on the Visual tab.

  2. In Grid/Tile Icons, set items to ON to display all four quadrants for the item, or OFF to display only one icon.

  3. Click Save.

7110

  • Set Show Infrastructure Provider Quadrants to ON to see the four icons in your provider under menu: Compute > Infrastructure > Providers.

  • Set Show Cloud Provider Quadrants to ON to see the four icons in your hosts under menu: Cloud > Providers.

  • Set Show Host Quadrants to ON to see the four icons in your hosts under menu: Compute > Infrastructure > Hosts.

  • Set Show Datastores Quadrants to ON to see the four icons in your datastores under menu: Compute > Infrastructure > Datastores.

  • Set Show VM Quadrants to ON to see the four icons in your virtual machines under menu: Compute > Infrastructure > Virtual Machines.

  • Set Show Template Quadrants to ON to see the four icons in your templates under menu: Compute > Infrastructure > Virtual Machines > Templates.

Set any of the above options to OFF to see only one icon instead of four quadrants.

  • Use the Truncate Long Text list to specify how the names of items are displayed if they are too long to show in full. Select the option based on the pattern shown.

Setting Default Items Per Page

Use the following procedure to set the default number of items to display on each resource page.

  1. From the Settings menu, browse to My Settings, then click on the Visual tab.

  2. In the Default Items Per Page area, select the default number of items to display for each view from the corresponding drop down list. 2017

  3. Click Save.

Setting the Start Page

Use the following procedure to set the default start page after logging in. For example, instead of going to the ManageIQ dashboard, you can set the default start page to see a list of your virtual machines.

  1. From the Settings menu, browse to My Settings, then click on the Visual tab.

  2. In the Start Page area, select the page to display at login.

  3. Click Save.

Setting Display Settings

Use the following procedure to set your own themes, colors, and time zone for the console. These settings are specific to the logged-on user.

  1. From the Settings menu, browse to My Settings, then click on the Visual tab.

  2. Make selections from Display Settings for the following items: 2141

    1. Use Chart Theme to select a group of colors and font sizes specifically for charts.

    2. Use Time Zone to select the time zone in which to display the console.

      Note:

      In time zones where clocks are set forward for daylight savings time, the time zone correctly displays as EDT (Eastern Daylight Time) in the console. When the clocks are set back, it correctly displays as EST (Eastern Standard Time).

    3. Use Locale to select the language in which to display the console.

  3. Click Save.

Default Views

The options under the Default Views menu allow you to configure the default layout used to display individual screens in the ManageIQ user interface. The options you select under this menu specify the default options for each screen, but you can also change the layout for each screen using the layout buttons on each screen.

Setting Default Views for the User Interface

Use the following procedure to set general view options:

  1. From the Settings menu, browse to My Settings, then click on the Default Views tab.

  2. In the General area, click the appropriate button for the way you want to view each type of screen listed. The selected view shows as a blue icon.

    7114

  3. Click 2020Grid View to view virtual thumbnails or icons.

  4. Click 2021Tile View for a view that combines the virtual thumbnail with some text properties that describe the items.

  5. Click 2022List View to view a detailed text listing.

  6. Click 2023Expanded View for an expanded view.

  7. Click 2024Compressed View for a compressed view.

  8. Click 2025Exists Mode to view only whether an attribute exists or not.

  9. Click Save.

Setting Default Views for Services

Use the following procedure to set default views for services in the menu: Compute > Services tab.

  1. From the Settings menu, browse to My Settings, then click on the Default Views tab.

  2. In the Services area, click the appropriate button for the way you want to view each item. 7115

    • Click 2020 Grid View to view virtual thumbnails or icons.

    • Click 2021 Tile View for a view that combines the virtual thumbnail with some text properties that describe the items.

    • Click 2022 List View to view a text listing.

  3. Click Save.

Setting Default Views for Clouds

Use the following procedure to set default views for clouds in the menu: Compute > Clouds tab.

  1. From the Settings menu, browse to My Settings, then click on the Default Views tab.

  2. In the Clouds area, click the appropriate button for the way you want to view each item. clouds

    • Click 2020 Grid View to view virtual thumbnails or icons.

    • Click 2021 Tile View for a view that combines the virtual thumbnail with some text properties that describe the items.

    • Click 2022 List View to view a detailed text listing.

  3. Click Save.

Setting Default Views for Infrastructure Components

Use the following procedure to set default views for infrastructure components in the menu: Compute > Infrastructure tab.

  1. From the Settings menu, browse to My Settings, then click on the Default Views tab.

  2. In the Infrastructure area, click the appropriate button for the way you want to view each item. 2032

    • Click 2020 Grid View to view virtual thumbnails or icons.

    • Click 2021 Tile View for a view that combines the virtual thumbnail with some text properties that describe the items.

    • Click 2022 List View to view a detailed text listing.

  3. Click Save.

Setting Default Views for Containers

Use the following procedure to set default views for containers in the menu: Compute > Containers tab.

  1. From the Settings menu, browse to My Settings, then click on the Default Views tab.

  2. In the Containers area, click the appropriate button for the way you want to view each item. containers

    • Click 2020 Grid View to view virtual thumbnails or icons.

    • Click 2021 Tile View for a view that combines the virtual thumbnail with some text properties that describe the items.

    • Click 2022 List View to view a text listing.

  3. Click Save.

Default Filters

The options in the Default Filters menu allow you to configure the default filters displayed for your hosts, virtual machines, and templates. These settings are available to all users.

Setting Default Filters for Cloud

To set default filters for cloud components:

  1. From the Settings menu, browse to My Settings, then click on the Default Filters tab.

  2. From the Cloud folder, check the boxes for the default filters that you want available. Items that have changed show in blue text.

  3. Click Save.

Setting Default Filters for Containers

To set default filters for containers:

  1. From the Settings menu, browse to My Settings, then click on the Default Filters tab.

  2. From the Containers folder, check the boxes for the default filters that you want available. Items that have changed show in blue text.

  3. Click Save.

Setting Default Filters for Infrastructure

To set default filters for infrastructure components:

  1. From the Settings menu, browse to My Settings, then click on the Default Filters tab.

  2. In the Infrastructure folder, select the default filters that you want available. Items that have changed show in blue text.

  3. Click Save.

Setting Default Filters for Physical Infrastructure

To set default filters for physical infrastructure components:

  1. From the Settings menu, browse to My Settings, then click on the Default Filters tab.

  2. In the Physical Infrastructure folder, select the default filters that you want available. Items that have changed show in blue text.

  3. Click Save.

Setting Default Filters for Services

To set default filters for services:

  1. From the Settings menu, browse to My Settings, then click on the Default Filters tab.

  2. In the Services folder, select the default filters that you want available. Items that have changed show in blue text.

  3. Click Save.

Time Profiles

The options under the Time Profiles menu allow you to specify the hours for which data is displayed when viewing capacity and utilization screens. Time profiles are also used to configure performance and trend reports.

Creating a Time Profile

To create a time profile:

  1. From the Settings menu, browse to My Settings, then click on the Time Profiles tab.

  2. Click Configuration, and plus
greenAdd a new Time Profile. 2039

  3. Type a meaningful name in the Description field.

  4. Select the users who can access the time profile from the Scope list:

    • Select All Users to create a time profile that is available to all users. Only the super administration and administration roles can create, edit, and delete a global profile.

    • Select Current User if this time profile should only be available to the user creating it.

  5. Check the Days and Hours for the time profile.

  6. For Timezone, you can select a specific time zone or, you can let the user select a time zone when displaying data.

  7. If you select a specific time zone, you also have the option to Roll Up Daily Performance data. This option is only available to users with the administration or super administration role. Enabling the Roll Up Daily Performance option reduces the time required to process daily capacity and utilization reports and to display daily capacity and utilization charts.

  8. Click Add.

Note:

The following relationships exist between time zones and performance reports:

  • The configured time zone in a performance report is used to select rolled up performance data, regardless of the user’s selected time zone.

  • If the configured time zone is null, it defaults to UTC time for performance reports.

  • If there is no time profile with the report’s configured time zone that is also set to roll up capacity and utilization data, the report does not find any records.

For non-performance reports, the user’s time zone is used when displaying dates and times in report rows.

Editing a Time Profile

To edit a time profile:

  1. From the Settings menu, browse to My Settings, then click on the Time Profiles tab.

  2. Check the time profile you want to edit.

  3. Click Configuration, and 1851 Edit selected Time Profile.

  4. Make the required changes.

  5. Click Save.

Copying a Time Profile

To copy a time profile:

  1. From the Settings menu, browse to My Settings, then click on the Time Profiles tab.

  2. Check the time profile you want to copy.

  3. Click Configuration, and 1859 Copy selected Time Profile.

  4. Make the required changes.

  5. Click Save.

Deleting a Time Profile

To delete a time profile:

  1. From the Settings menu, browse to My Settings, then click on the Time Profiles tab.

  2. Check the time profile you want to delete.

  3. Click Configuration, and gui
delete Delete selected Time Profiles.

  4. Click Save.

Tasks

The options under the Tasks menu allow you to view and control currently running tasks in ManageIQ. The status of each task is displayed, including time started, time ended, what part of the task is currently running, and any errors encountered.

My VM and Container Analysis Tasks

The My VM and Container Analysis Tasks menu allows you to view all tasks running on virtual machines and containers for the currently logged-in user.

From the My VM and Container Analysis Tasks menu, you can:

  • See jobs that the logged on user created for the SmartProxy either through a schedule or by manually initiating a SmartState Analysis of a virtual machine or container.

  • See if a job completed successfully, resulted in an error, or is running.

  • See the reason for an error.

  • Filter the tasks by status and state.

  • View the owner or host of the virtual machine or container referenced.

  • Delete a task either explicitly or older than another task.

Filtering the VM and Container Analysis Task List

This procedure describes how to filter the virtual machine and container analysis task list. You can filter the task list by zone, time period, task status, and task state.

To filter the virtual machine and container analysis task list:

  1. From the Settings menu, select Tasks.

  2. Click My VM and Container Analysis Tasks.

  3. From the Zone list, select a specific zone, or select All Zones.

  4. From the 24 Hour Time Period list, select the period of time to view the tasks.

  5. For Task Status, select the check boxes next to the status to view.

  6. From the Tasks State list, select the state to view.

  7. Click Apply.

Deleting a Task from the VM and Container Analysis Task List

To delete a task from the list of virtual machine and container analysis tasks:

  1. From the Settings menu, select Tasks.

  2. Click My Tasks.

  3. Select the tasks to delete. From the Delete menu:

    1. Click Delete to delete the selected tasks.

    2. Click Delete Older to delete the tasks older than the selected tasks.

    3. Click Delete All to delete all tasks.

  4. Click OK.

My Other UI Tasks

The My Other UI Tasks menu allows you to view all tasks running in the user interface for the currently logged-in user.

Filtering the My Other UI Tasks List

This procedure describes how to filter the user interface analysis task list. You can filter the task list by time period, task status, and task state.

To filter the other user interface task list:

  1. From the settings menu, select Tasks.

  2. Click My Other UI Tasks.

  3. From the 24 Hour Time Period list, select the period of time to view the tasks.

  4. For Task Status, select the check boxes next to the status to view.

  5. From the Tasks State list, select the state to view.

  6. Click Apply.

Deleting a My Task

To delete a task from the list of other user interface tasks:

  1. From the settings menu, select Tasks.

  2. Click My Tasks.

  3. Select the tasks to delete. From the Delete menu:

    1. Click Delete to delete the selected tasks.

    2. Click Delete Older to delete the tasks older than the selected tasks.

    3. Click Delete All to delete all tasks.

  4. Click OK.

All Tasks

The All Tasks menu allows you to view all tasks running on virtual machines and containers for all users.

From the All Tasks menu, you can:

  • See jobs that all users have created for the SmartProxy either through a schedule or by manually initiating a SmartState Analysis of a virtual machine or container.

  • See if a job completed successfully, resulted in an error, or is running.

  • See the reason for an error.

  • Filter the tasks by status and state.

  • View the owner or host of the virtual machine or container referenced.

  • Delete a task either explicitly or older than another task.

Filtering the VM and Container Analysis Task List

This procedure describes how to filter virtual machine analysis task lists. You can filter the task list by zone, time period, task status, and task state.

To filter the virtual machine and container analysis task list:

  1. From the Settings menu, select Tasks.

  2. Click All Tasks.

  3. From the Zone list, select a specific zone, or select All Zones.

  4. From the 24 Hour Time Period list, select the period of time to view the tasks.

  5. For Task Status, select the check boxes next to the status to view.

  6. From the Tasks State list, select the state to view.

  7. Click Apply.

Deleting a VM and Container Analysis Task

To delete a task from the list of all virtual machine and container analysis tasks:

  1. From the settings menu, select Tasks.

  2. Click All Tasks.

  3. Select the tasks to delete. From the Delete menu:

    1. Click Delete to delete the selected tasks.

    2. Click Delete Older to delete the tasks older than the selected tasks.

    3. Click Delete All to delete all tasks.

  4. Click OK.

All Tasks

The All Tasks menu allows you to view all tasks for all users. This menu is only accessible when you are logged in as the admin user.

Filtering the All Tasks List

This procedure describes how to filter the list of all other tasks. You can filter the task list by time period, task status, and task state.

To filter the all other tasks list:

  1. From the Settings menu, select Tasks.

  2. Click All Tasks.

  3. From the 24 Hour Time Period list, select the period of time to view the tasks.

  4. For Task Status, select the check boxes next to the status to view.

  5. From the Tasks State list, select the state to view.

  6. Click Apply.

Deleting a Task from the All Tasks List

To delete a task from the list of all other tasks:

  1. From the settings menu, select Tasks.

  2. Click All Tasks.

  3. Select the tasks to delete. From the Delete menu:

    1. Click Delete to delete the selected tasks.

    2. Click Delete Older to delete the tasks older than the selected tasks.

    3. Click Delete All to delete all tasks.

  4. Click OK.

Configuration

The options under the Configuration Configuration menu allow you to configure global options for your ManageIQ environment, view diagnostic information, and view analytics on the servers in the environment. The menu displays the ManageIQ environment at the enterprise, zone, and server levels.

There are four main areas:

  • Settings

    This menu allows you to configure global settings for your ManageIQ infrastructure. You can also create analysis profiles and schedules for these profiles.

  • Access Control

    This menu contains options for configuring users, groups, roles, and tenants.

  • Diagnostics

    This menu displays the status of your servers and their roles and provides access to logs.

  • Database

    specify the location of your Virtual Machine Database (VMDB) and its login credentials.

Settings

The options under the Settings area provide a hierarchical view of options that allow you to configure global options for the infrastructure of your ManageIQ environment. At the top level, you have Settings including users, LDAP Groups, account roles, capacity and utilization collection, tag categories, values, and imports, custom variable imports, and license uploads. When you click on Settings and expand it, you can configure Analysis Profiles, Zones, and Schedules.

2041

When you go the Settings accordion, you are automatically taken to the server list under Zones.

Regions

Use Regions for centralizing data which is collected from public and private virtualization environments. A region is ultimately represented as a single database for the VMDB. Regions are particularly useful when multiple geographical locations need to be managed as they enable all the data collection to happen at each particular location and avoid data collection traffic across slow links between networks.

When multiple regions are being used, each with their own unique ID, a master region can be created to centralize the data of all the children regions into a single master database. To do this, configure each child region to replicate its data to the master region database (Red Hat recommends use of region 99). This parent and child region is a one-to-many relationship.

Regions can contain multiple zones, which in turn contain appliances. Zones are used for further segregating network traffic along with enabling failover configurations. Each appliance has the capability to be configured for a number of specialized server roles. These roles are limited to the zone containing the appliance they run on.

Only one failover type of each server role can run in a zone. If multiple appliances have the same failover role, the extras are used as backups that activate only if the primary appliance fails. Non-failover server roles can run on multiple appliances simultaneously in a zone, so resources can be adjusted according to the workload those roles are responsible for.

The following diagram demonstrates an example of the multiple regions working together in a ManageIQ environment.

7151

The Master appliance is located in Chicago and contains a master region and a subregion that manages the worker appliances. The Mahwah technology center contains a single subregion that manages two zones. Likewise the San Diego technology center contains a single subregion managing a single zone.

Note:

  • Replicating a parent region to a higher-level parent is not supported.

  • Parent regions can be configured after the child regions are online.

The following diagram provides a closer look at a region: 7150

In this region, we have several ManageIQ appliances acting as UI nodes and worker nodes. These worker nodes execute tasks on the providers in your environment. The Region also uses a region database that reports to a master database on the main ManageIQ appliance. All appliances can connect to the authentication services (Active Directory, LDAP, Identity Management), outgoing mail (SMTP), and network services (SNMP).

Region Scope

Regions are used to consolidate data from multiple VMDBs to a central database. The database at the top level, the master VMDB, cannot be used for operational tasks such as SmartState Analysis or Capacity and Utilization data collection. It is intended for use as a reporting database that includes all information across multiple subordinate regions. The subordinate regions replicate their information to the master.

Note:

The subordinate regions are not aware of each other from a database perspective. You cannot see information from one subordinate region in another. The only VMDB with data visibility to all subordinate regions is the top level.

Master Regions Scope

  • Reports all information from all subordinate VMDBs reporting up to it.

  • Can perform power operations on virtual machines from subordinate regions.

  • Controls its own access control list.

Subordinate Regions Scope

  • Each subordinate controls its own access control independent of the other regions.

  • Can only do work (such as SmartState Analysis and Capacity and Utilization collection) in its own region.

  • Has no knowledge of the other regions.

  • Replicates its data up to the master region.

Region Settings

In the Region area, set items that apply to your entire ManageIQ infrastructure such as users, LDAP Groups, capacity and utilization collection, company tags and tag categories, and licensing. Regions are also used for database replication.

Capacity and Utilization Collection
Capacity and Utilization Collection Settings

Use C & U Collection Settings to select specifically which clusters and datastores you want to collect usage data for. By selecting a cluster, you are choosing to collect data for all hosts and virtual machines that are part of that cluster. You must also have a server with the Capacity & Utilization Coordinator, Data Collector, and Data Processor roles enabled as well. See Section Server Control Settings.

After a provider has been discovered and its relationships refreshed, view the clusters, hosts, and datastores from the settings menu. Navigate to Settings, then click on Application Settings. Click the menu: Settings > Region, then select the C & U Collection tab.

Enabling a Cluster, Host, or Datastore for Capacity and

Utilization Collection

To enable a cluster, host, or datastore for Capacity and Utilization Collection:

  1. Click Settings, then click on Application Settings.

  2. Click the Settings accordion, then select Region, then click on the C & U Collection tab.

  3. In the Clusters area, check all clusters and hosts that you want to collect data for.

  4. In the Datastores area, check all datastores that you want to collect data for.

  5. Click Save.

Note:

  1. As new clusters, hosts, and datastores are discovered, you will need to come back to this configuration to enable collection of capacity and utilization data unless you have used the Collect for All check boxes.

  2. Collect for All Clusters must be checked to be able to collect capacity and utilization data from cloud providers such as Red Hat OpenStack Platform or Amazon EC2.

Tags
Company Tag Categories and Tags

ManageIQ allows you to create your own set of tags and tag categories. Use tags to create a customized, searchable index for your resources. Depending on your database type, your tags may be case sensitive. After creating these values, you can apply them to your resources. There are two kinds of tags.

  • Company tags which you will see under My Company Tags for a resource. Create company tags from the settings menu. Browse to Settings > Application Settings. Click the Settings accordion, then select the Region and click on the Tags tab, then My Company Tags. A selection of company tags is provided to you by default as samples. These can be deleted if you do not need them, but are not recreated by ManageIQ.

  • System tags are assigned automatically by ManageIQ.

Creating a Tag Category

To create a tag category:

  1. Browse to Settings > Application Settings.

  2. Click on the Settings accordion, then Region.

  3. Select the Tags tab, then click on the My Company Categories tab.

  4. Click Add under the Actions column to create a new category.

  5. In the Category Information area: 2042

    • Use Name to create a short name that refers to category in the VMDB.

      Note:

      The Name and Single Value fields cannot be changed after the category has been added.

    • Use Description to type a brief explanation of how the category should be used. This shows when you try to add a value to the category.

    • Use Long Description to type a detailed explanation of the category.

    • Set Show in Console to ON when the category is ready for use in the console. For example, you want to populate values for the category before exposing it to users.

    • Set Single Value to ON for categories that can only have a single value assigned to a resource. For example, a virtual machine can only be assigned to one location, but could belong to more than one department. This cannot be changed after the category is created.

    • Set Capture C & U Data by Tag to ON for the ability to group capacity and utilization data by this tag category. To use this, be sure to assign this tag to all the resources that you want to group by.

  6. Click Add.

Repeat these steps for each category you need. After you have created the category, you can add values to it.

Important

If no values are created for a category, you are unable to assign a value from that category nor be able to filter by that category.

Deleting a Tag Category

To delete a tag category:

  1. Browse to Settings > Application Settings.

  2. Click on the Settings accordion, then Region.

  3. Select the Tags tab, then click on the My Company Categories tab.

  4. Click Delete under the Actions column for the category you want to delete.

  5. Click OK to confirm.

Note:

When you delete a tag category, the category values are removed, and any tags from the category are unassigned from all resources.

Creating a Company Tag

To create a company tag:

  1. Browse to Settings > Application Settings.

  2. Click on the Settings accordion, then Region.

  3. Select the Tags tab, then click on the My Company Tags tab.

  4. In the Choose a Category area, select a category from the Category list.

    Note:

    • Some categories only allow one value to be assigned to a resource.

    • For some databases such as PostgreSQL, tags are case sensitive. For example, filtering by ‘Linux’ in title case give you different results from filtering by ‘linux’ in lower case.

  5. Click Add under the Actions column, and type a Name and Description for your new value.

  6. Click Add once again to add the new entry to the table.

Deleting a Company Tag

To delete a company tag:

  1. Browse to Settings > Application Settings.

  2. Click on the Settings accordion, then Region.

  3. Select the Tags tab, then click on the My Company Tags tab.

  4. Click Delete under the Actions column next to the tag to delete it.

    Note:

    When you delete a tag, the tag is also deleted from any resource to which it was assigned.

  5. Click OK to confirm.

Importing Tags for Virtual Machines

You can import a CSV file with tag assignments into the VMDB. For the import to be successful, be aware of the following:

  • The file must be in the following format, with one line for each virtual machine. One virtual machine per tag must be on a separate line even if you are assigning multiple tags of the same category.

  • You must use the display names of the category and the display name for the tag for the import to work.

    name,category,entry
    evm2,Provisioning Scope,All
    evm2,Exclusions,Do not Analyze
    evm2,EVM Operations,Analysis Successful
    rhel6,Department,Presales
    rhel6,Department,Support

Importing Tags for a Virtual Machine from a CSV File

To import tags for a virtual machine from a CSV file:

  1. Make sure the CSV file is in the required format.
  2. Browse to Settings > Application Settings.
  3. Click on the Settings accordion, then Region.
  4. Select the Tags tab, then click on the Import Tags tab.

  5. Click Choose file to go to the location where the file is located.

  6. Click Upload.

    Note:

    If there are any problems with the file, such as an incorrect column name, unknown virtual machine, unknown tag, or multiple values for a tag that should have only one, an error message will appear in the console for those records.

  7. Click Apply.
Importing Custom Values for Virtual Machines and Hosts

You can import a CSV file with asset tag information into the VMDB for a virtual machine or import custom values for hosts. For the import to be successful, the file must be in the following format, with one line for each virtual machine or host.

  • There are two columns.

  • The first line of the file must have the column names as shown below.

  • The column names are case sensitive.

  • Each value must be separated by a comma.

Virtual Machine Import Example

name,custom_1
Ecommerce,665432
Customer,883452
SQLSrvr,1090430
Firewall,8230500

For virtual machines, the value for custom_1 will show in the VM Summary page as the Custom Identifier page as the Custom Identifier in the Properties area. All of the custom values will show in the Custom Fields area.

Host Import Example

hostname,custom_1,custom_2
esx303.galaxy.local,15557814,19948399
esxd1.galaxy.local,10885574,16416993
esxd2.galaxy.local,16199125,16569419

For hosts, the value for custom_1 will show in the Host Summary page as the Custom Identifier in the Properties area. All of the custom values will show in the Custom Fields area.

Importing Asset Tags for a Virtual Machine from a CSV File

To import asset tags for a virtual machine from a CSV file

  1. Make sure the CSV file is in the required format.
  2. Browse to Settings > Application Settings.
  3. Click on the Settings accordion, then Region.
  4. Select the Tags tab, then click on the Import Variables tab.
  5. Select the type of custom variable you want to import, either Host or VM.

  6. Click Choose file to go to the location where the custom variable file is located.

  7. Click Upload.

    Note:

    If there are any problems with the file, such as an incorrect column name, unknown virtual machine or host, a message appears.

  8. Click Apply.
Tag Mapping

You can map labels from external providers to tags within ManageIQ.

  1. Browse to Settings > Application Settings.
  2. Click on the Settings accordion, then select the Region.
  3. Select the Tags tab, then click on the Map Tags tab.
  4. Click Add to create a tag map.
  5. In the Choose a resource entity and label, select the Entity and enter a Resource label, then enter a Tag Category.
  6. Click Add.
Customizing the Help Menu

ManageIQ allows administrators to customize the help menu. Use this feature to define menu labels, URLs and how each window opens for users.

Note:

Any change to the help menu will take effect upon a full page reload.

Customize the help menu using the following steps:

  1. Browse to Settings > Application Settings.
  2. Click on the Settings accordion, then Region.
  3. Click on the Help Menu tab.
  4. Provide custom Menu item labels and an associated URL for each. Define how each window should open by selecting from the options in the Open in menu.

  5. Click Submit.

Profiles

Creating an Analysis Profile

You can create an analysis profile by referring to the sample profiles provided in the console. You can copy the sample profile or create a new one.

Creating a Host Analysis Profile

To create a host analysis profile:

  1. Browse to Settings > Application Settings.
  2. Click on the Settings accordion, then click Analysis Profiles.

  3. Click Configuration, and plus
green (Add Host Analysis Profile).

  4. In the Basic Information area, type in a Name and Description for the analysis profile. 2048

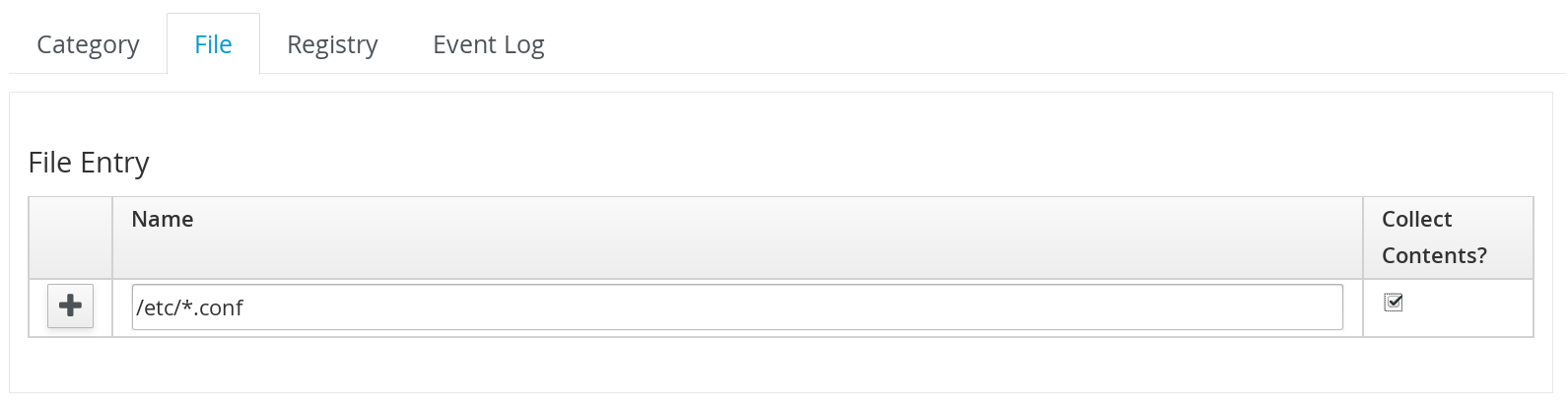

  5. Click File to collect information about a file or group of files.

  6. From the File Entry area, click plus
green (Click to add a new entry) to add a file or group of files. 2047

    • Check Collect Contents to not only check for existence, but also gather the contents of the file. If you do this, then you can use the contents to create policies in ManageIQ Control.
  7. Click Event Log to specify event log entries to collect.

  8. From the Event Log Entry area, click plus green Click to add a new entry to add a type of event log entry. Type in a Name. You can type in a specific message to find in Filter Message. In Level, set the value for the level of the entry and above. Specify the Source for the entry. Finally, set the # number of days that you want to collect event log entries for. If you set this to 0, it will go as far back as there is data available. 2046

  9. Click Add.
Creating a Virtual Machine Analysis Profile

To create a virtual machine analysis profile:

  1. Browse to Settings > Application Settings.
  2. Click on the Settings accordion, then click Analysis Profiles.

  3. Click Configuration, and plus green Add VM Analysis Profile.

  4. In the Basic Information area, type in a Name and Description for the analysis profile. 2050

  5. You begin in the Category tab. From the Category Selection area, check the categories you want to collect information for. This is available for virtual machine profiles only. 2051

  6. Click the File tab to collect information about a file or group of files.

  7. From the File Entry area, click plus green Add this entry to add a file or group of files, then type a name. For virtual machines, specify the file to check for. Check the box under Collect Contents if you want to collect the file contents as well. The files can be no larger than 1 MB. 2052

  8. Click the Registry tab to collect information on a registry key.

  9. From the Registry Entry area, type your Registry Key and Registry Value. To evaluate whether a registry key exists or does not exist on a virtual machine, without providing a value, type * in the Registry Value field. Then, you do not need to know the registry value to collect the keys. This is available for virtual machine profiles only. 2052 reg

  10. Click Event Log to specify event log entries to collect.

  11. From the Event Log Entry area, complete the fields to add a type of event log entry. You can type in a specific message to find in Filter Message. In Level, set the value for the level of the entry and above. Specify the Source for the entry. Finally, set the # (number) of days that you want to collect event log entries for. If you set this to 0, it will go as far back as there is data available. 2054

  12. Click Add.
Editing an Analysis Profile

To edit an analysis profile:

  1. Browse to Settings > Application Settings.
  2. Click on the Settings accordion, then click Analysis Profiles.
  3. Check the analysis profile you want to edit.

  4. Click 1851 Edit the selected Analysis Profiles.

  5. Make any changes.

  6. Click Save.

The changes are added to the analysis profile. The virtual machines or hosts must be re-analyzed to collect the new or modified information.

Copying an Analysis Profile

To copy an analysis profile:

  1. Browse to Settings > Application Settings.
  2. Click on the Settings accordion, then click Analysis Profiles.

  3. Check the analysis profile you want to copy.

  4. Click Configuration, then 1859 Copy the selected Analysis Profiles.

  5. Type a new Name and Description.

  6. Make required changes.

  7. Click Add.
Setting a Default Analysis Profile

If you want to set an analysis profile to be used for all virtual machines, you can create a default profile.

To create a default analysis profile:

  1. Browse to Settings > Application Settings.
  2. Click on the Settings accordion, then click Analysis Profiles.

  3. Click on the analysis profile you want to set as the default.

  4. Click Configuration, then 1851 Edit the selected Analysis Profile.

  5. For a virtual machine profile, enter default in lower case in Name. For a host profile, enter host default. set default analysis profile

  6. Click Save.

Zones

You can organize your ManageIQ Infrastructure into zones to configure failover and isolate traffic. A provider that is discovered by a server in a specific zone gets monitored and managed in that zone. All jobs, such as a SmartState Analysis or VM power operation, dispatched by a server in a specific zone can get processed by any ManageIQ appliance assigned to that same zone.

Zones can be created based on your own environment. You can make zones based on geographic location, network location, or function. When first started, a new server is put into the default zone.

Suppose you have four ManageIQ appliances with two in the East zone, appliances A and B, and two in the West zone, appliances C and D. VC East is discovered by one of the ManageIQ appliances in the ManageIQ Eastern zone. If Appliance A dispatches a job of analyzing twenty virtual machines, this job can be processed by either Appliance A or B, but not C or D.

Note:

Only users assigned the super administrator role can create zones. There must always be at least one zone. The Default Zone is provided and cannot be deleted.

Creating a Zone

To create a zone:

  1. Browse to Settings > Application Settings.
  2. Click on the Settings accordion, then click Zones.

  3. Click Configuration, and plus green Add a new Zone to create a zone.

  4. In the Zone Information area, type in a Name and Description for the new zone. 2057

  5. Use SmartProxy Server IP to specify the IP address of the server that you want SmartProxies installed in this zone to report to. If this is not set, then the IP address of the server that deployed the SmartProxy is used. This does not apply to embedded SmartProxies.

  6. Optionally, you can configure NTP servers for the entire zone in the NTP Servers area. These settings will be used if the NTP servers have not been set for the appliance in the menu: Operations > Server page.

  7. In the Settings area, set the number for Max Active VM Scans. The default is Unlimited.

  8. Click Save.
Deleting a Zone

To delete a zone:

  1. Browse to Settings > Application Settings.
  2. Click on the Settings accordion, then click Zones.

  3. Click the zone you want to remove.

    Note:

    You cannot delete a zone if there are servers assigned to it.

  4. Click 1847 Configuration, then click gui delete Delete this Zone.

  5. Click OK to confirm.
Editing a Zone

To edit a zone:

  1. Browse to Settings > Application Settings.
  2. Click on the Settings accordion, then click Zones.
  3. Click the zone you want to edit.

  4. Click 1847 Configuration, then click 1851 Edit this Zone.

  5. Complete the required changes.

  6. Click Save.
Adding SmartProxy Affinity to a Zone:

Enable SmartProxy Affinity for zones containing servers with the SmartProxy role to run a SmartState Analysis.

To add SmartProxy Affinity to a zone:

  1. Browse to Settings > Application Settings.
  2. Click on the Settings accordion, then click Zones.
  3. Click the zone in which you want to enable SmartProxy Affinity.
  4. Click the SmartProxy Affinity tab and click the appropriate server.
  5. Click Save.

Servers

Server settings enables you to control how each ManageIQ server operates including authentication, logging, and email. If you have multiple servers in your environment that are reporting to one central VMDB, then you can edit some of these settings from the console by specifying which server you want to change.

Note:

The server selection options are only available if you have multiple servers sharing one VMDB.

Changing Server Settings

To change server settings:

  1. Browse to Settings > Application Settings.
  2. Click on the Settings accordion, then click Zones.
  3. Click the zone where the ManageIQ server is located.

  4. In the Servers area, click on the ManageIQ server.

  5. Click Server.

  6. Make any required changes.

  7. Click Save.
Basic Information Settings 2059
  • Use Company Name (maximum 20 characters) to customize the interface with your company’s name. You will see the company name when you are viewing or modifying the tags of an infrastructure object or virtual machine.

  • Specify the Appliance Name (maximum 20 characters) you want displayed as the appliance that you are logged into. You will see this in the upper right corner of the interface with the name of the consoles logged on user.

  • Use Zone to isolate traffic and provide load balancing capabilities. Specify the zone that you want this ManageIQ appliance to be a member of. At startup, the zone is set to default.

  • Use Appliance Time Zone to set the time zone for this server.

    Note:

    This is the time zone used when created scheduled analyses. This is not the same as the Time Zone parameter, which is found by navigating to the settings menu, then My Settings, then exploring the Display Settings area, and is the time zone displayed in the console.

  • Use Default Locale to specify the default language for this server.

Server Control Settings

A server role defines what a server can do. Red Hat recommends that Database Operations, Event Monitor, Reporting, Scheduler, SmartState Analysis, User Interface, Provider Inventory, Provider Operations, and Web Services be enabled on at least one server in each zone. These roles are enabled by default on all servers.

  • Use Default Repository SmartProxy to set the SmartProxy from which you refresh your virtual machine repositories. This host must have access to your repositories to analyze its virtual machines.

Note:

  • Only super administrators can change server roles.

  • If you are using more than one ManageIQ appliance, be sure to set this on all of the appliances.

Server Roles

Note:

  • Server roles that are in an active/active high availability configuration (load balancing and failover protection) are active in more than one location; whereas, roles that are in an active/passive (primary/secondary in the case of ManageIQ) high availability configuration (failover protection), if more than one ManageIQ server in a specific zone or region has this role, only one will be active (primary) at a time and a failover has to occur to the passive (secondary) appliance with that role.

  • For information on region and zone diagnostics and server role priorities, see Diagnostics.

Server Role Description Zone or Region Aware Primary/Secondary or Active/Active
Automation Engine Use this role if you want to use this ManageIQ server to process automation tasks. N/A Active/Active
Capacity and Utilization Coordinator The Capacity & Utilization Coordinator role checks to see if it is time to collect data, somewhat like a scheduler. If it is time, a job is queued for the Capacity and Utilization Data Collector. The coordinator role is required to complete Capacity and Utilization data collection. If more than one ManageIQ server in a specific zone has this role, only one will be active at a time. Zone Primary/Secondary
Capacity & Utilization Data Collector The Capacity & Utilization Data Collector performs the actual collection of capacity and utilization data. This role has a dedicated worker, and there can be more than one ManageIQ server with this role in a zone. Zone Active/Active
Capacity & Utilization Data Processor The Capacity & Utilization Data Processor processes all of the data collected, allowing ManageIQ to create charts. This role has a dedicated worker, and there can be more than one ManageIQ server with this role in a zone. Zone Active/Active
Database Operations Use Database Operations to enable this ManageIQ server to run database backups or garbage collection. Zone Active/Active
Embedded Ansible This role is disabled by default. The Embedded Ansible role supports Ansible Automation Inside functionality. Enable this role to configure playbook repositories and run playbooks natively to back service catalog items. NOTE: Enable the Provider Inventory server role in the same zone as the Embedded Ansible server role to ensure proper functionality. Region Primary/Secondary
Event Monitor This role is enabled by default and provides the information shown in timelines. The Event Monitor is responsible for the work between the ManageIQ server and your providers. It starts 2 workers for each provider. One worker, the monitor, is responsible for maintaining a connection to a provider, catching events, and putting them on the ManageIQ message queue for processing. The second worker, the handler, is a message queue worker responsible for delivering only those messages for a provider. You should have at least one of these in each zone. Zone Primary/Secondary
Git Repository The Git Repositories Owner server role supports importing domains into automate from a git repository. This feature is available from the Automate > Import/Export screen in the ManageIQ user interface. Region Primary/Secondary
Notifier Use this role if you will be using ManageIQ Control or Automate to forward SNMP traps to a monitoring system or send e-mails. See Creating an Alert for details on creating SNMP alerts. If more than one ManageIQ server in a specific region has this role, only one will be active at a time. Region Primary/Secondary
Provider Inventory This role is enabled by default. This role is responsible for refreshing provider information including EMS, hosts, virtual machines, and clusters, and is also responsible for capturing datastore file lists. If more than one ManageIQ server in a specific zone has this role, only one will be active at a time. Required in the same zone as a ManageIQ appliance with the Embedded Ansible role enabled. Zone Primary/Secondary
Provider Operations This role is enabled by default. This role sends stop, start, suspend, shutdown guest, clone, reconfigure, and unregister to the provider, directly from the console or through a policy action if you have ManageIQ Control. More than one ManageIQ server can have this role in a zone. Zone Active/Active
RHN Mirror An appliance with RHN Mirror enabled acts as a server containing a repository with the latest ManageIQ packages. This also configures other appliances within the same region to point to the chosen RHN Mirror server for updates. This provides a low bandwidth method to update environments with multiple appliances. N/A Active/Active
Reporting This role is enabled by default. The Reporting role specifies which ManageIQ servers can generate reports. If you do not have a ManageIQ server set to this role in a zone, then no reports can be generated in that zone. You should have at least one of these in each zone. Zone Active/Active
Scheduler This role is enabled by default. The Scheduler sends messages to start all scheduled activities such as report generation and SmartState analysis. This role also controls all system schedules such as capacity and utilization data gathering. One server in each region must be assigned this role or scheduled ManageIQ events will not occur. If more than one ManageIQ server in a specific region has this role, only one will be active at a time. Region Primary/Secondary
SmartProxy Enabling the SmartProxy role turns on the embedded SmartProxy on the ManageIQ server. The embedded SmartProxy can analyze virtual machines that are registered to a host and templates that are associated with a provider. To provide visibility to repositories, install the SmartProxy on a host from the ManageIQ console. This SmartProxy can also analyze virtual machines on the host on which it is installed. Enabling the SmartProxy role on an appliance requires selecting the SmartProxy Affinity for a zone to run a SmartState Analysis. By default, no selections are enabled under SmartProxy Affinity. Zone Active/Active
SmartState Analysis This role is enabled by default. The SmartState Analysis role controls which ManageIQ servers can control SmartState Analyses and process the data from the analysis. You should have at least one of these in each zone. Zone Active/Active
User Interface This role is enabled by default. The Web Services role must also be enabled with this role to log into the user interface, as the User Interface role queries the API to receive tokens for login. Uncheck User Interface if you do not want users to be able to access this ManageIQ server using the ManageIQ console. For example, you may want to turn this off if the ManageIQ server is strictly being used for capacity and utilization or reporting generation. More than one ManageIQ server can have this role in a zone. Zone Active/Active
Web Services This role is enabled by default. The Web Services roles provides API access and must be enabled if the User Interface role is enabled to log into the user interface. You can also enable the Web Services role to provide API-only access to the server. Uncheck Web Services to stop this ManageIQ server from acting as a web service provider. More than one ManageIQ server can have this role in a zone. N/A Active/Active
Websocket This role enables starting or stopping websocket workers required for proxying remote consoles. N/A Active/Active

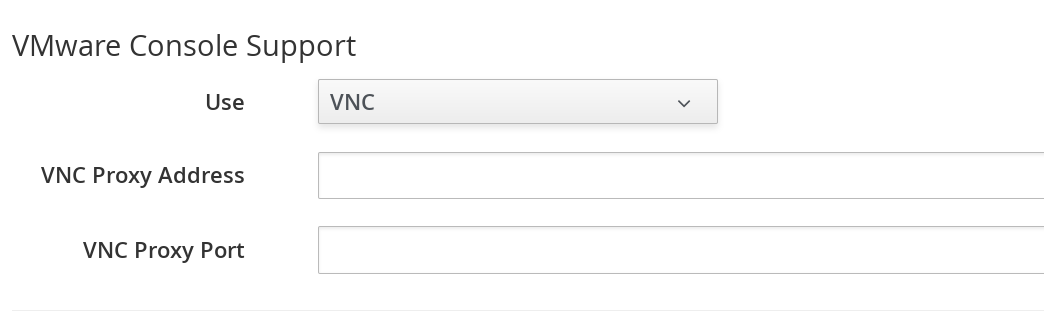

VMware Console Settings

If you are using the ManageIQ control feature set, then you have the ability to connect to a Web console for virtual machines that are registered to a host. To use this feature, you must have VNC installed, VMware’s WebMKS SDK enabled in ManageIQ, or the VMRC native desktop application installed for your environment.

Note:

See vendor documentation to ensure you are installing appropriate applications for your virtual infrastructure. Once you have installed the required software, you must specify its version in the ManageIQ configuration settings.

2061

  • If you select VNC, type in the port number used. This port must be open on the target virtual machine and the VNC software must be installed there. On the computer that you are running the console from, you must install the appropriate version of Java Runtime if it is not already installed.

  • If you select VMware WebMKS, select the appropriate version.

  • If using VMware VMRC desktop application, be sure that you have fulfilled the requirements for your vCenter version. The correct version of the VMRC desktop application from VMware must be installed on the client computer. To do this, log into the vCenter Web Service and attempt to open a virtual machine console. The vSphere Web Client must be installed on vCenter version 5, and the provider must be registered to it. For vCenter version 4, the VMware vCenter Management Webservices must be running.

NTP Servers Settings In the NTP Servers area, you can

specify the NTP servers to use as source for clock synchronization here. The NTP settings specified here will override Zone NTP settings. Enter one NTP server hostname or IP address in each text box.

Configuring SNMP

You can use Simple Network Management Protocol (SNMP) traps to send alerts for various aspects of a ManageIQ environment.

Requirements

  • Configure your SNMP management station to accept traps from ManageIQ appliances. Consult your management station’s documentation.

  • Each appliance that could process SNMP traps must have the snmpd and snmptrapd daemons running.

  • The region where the appliances are located must have the Notifier role enabled and the failover role priority set.

To enable the snmpd and snmptrapd daemons

  1. Access each SNMP processing appliance using SSH.

  2. Set the SNMP daemons to run on start up:

    # chkconfig --level 2345 snmpd on
    # chkconfig --level 2345 snmptrapd on

  3. The daemons run automatically when the appliance is restarted, but must be started manually now.

    # service snmpd start
    # service snmptrapd start


To enable the notifier role:

  1. Access each SNMP processing appliance using their web interfaces.

  2. Browse to Settings > Application Settings.

  3. Click on the Settings accordion, then click Zones. Select the zone where the EVM server is located, and select the EVM server.

  4. In the Server Control area, set the Notifier server role option to ON.

  5. Click Save.

To set the failover priority role:

  1. Browse to Settings > Application Settings then click the Diagnostics accordion.

  2. Select the zone where the EVM server is located.

  3. Click Roles by Servers or Servers by Roles to view your servers.

  4. In the Status of Roles for Servers in Zone Default Zone area, click the role that you want to set the priority for.

  5. Click Configuration, and 2097Promote Server to make this the primary server for this role.

Outgoing SMTP Email Settings

To use the email action in ManageIQ, set an email address to send emails from.

Note:

To be able to send any emails from the server, you must have the Notifier server role enabled. You can test the settings without the role enabled.

outgoingsmtp

  • Use Host to specify the host name of the mail server.

  • Use Port to specify the port for the mail server.

  • Use Domain to specify the domain name for the mail server.

  • Set Start TLS Automatically on ON if the mail server requires TLS.

  • Select the appropriate SSL Verify Mode.

  • Use the Authentication drop down to specify if you want to use login, plain, or no authentication.

  • Use User Name to specify the user name required for login authentication.

  • Use Password to specify the password for login authentication.

  • Use From E-mail Address to set the address you want to send the email from.

  • Use Test E-mail Address if you want to test your email settings. Click Verify to send a test email.

Web Services Settings

Web services are used by the server to communicate with the SmartProxy.

2064

  • Set Mode to invoke to enable 2-way Web services communication between the ManageIQ appliance and the SmartProxy. Set Mode to disabled to use Web services from the SmartProxy to the ManageIQ appliance only. When the ManageIQ appliance has work for the SmartProxy, the work will be placed in a queue in the VMDB. The work will be completed either when the ManageIQ appliance is able to contact the SmartProxy or when the next SmartProxy heartbeat occurs, whichever comes first.

  • If Web Services are enabled, you have the option to use ws-security.

Logging Settings

2065

  • Use Log Level to set the level of detail you want in the log. You can select from fatal, error, warn, info, and debug. The default setting is ‘info’.
Custom Support URL Settings

2066

  • Use URL to specify a specific URL that you want to be accessible from the About Product Assistance area.

  • Use Description to set a label for the URL.

Authentication

Use the Authentication tab to specify how you want users authenticated on the console. You can use the VMDB or integrate with LDAP, LDAPS, Amazon, or an external IPA server.

Changing Authentication Settings

To change authentication settings:

  1. Browse to Settings > Application Settings.

  2. Click the Settings accordion, then click Zones.

  3. Click the zone where the server is located.

  4. Click the server.

  5. Click the Authentication tab.

  6. Use Session Timeout to set the period of inactivity before a user is logged out of the console.

  7. Set the authentication method in Mode.

  8. Click Save.

Workers

Use the Workers page to specify the number of workers and amount of memory allowed to be used for each type.

Note:

Only make these changes when directed to by Red Hat Support.

Changing Settings for a Worker

To change the settings for a worker

  1. Browse to Settings > Application Settings.

  2. Click on the Settings accordion, then click Zones.

  3. Click the zone where the server is located.

  4. Click on the server.

  5. Click Workers.

  6. Go to the type of worker you have been directed to change.

  7. If applicable, change Count or Memory Threshold using the dropdown boxes.

  8. Click Save.

Database

Use the Database page to specify the location of your Virtual Machine Database (VMDB) and its login credentials. By default, the type is PostgreSQL on the Server.

Note:

The server may not start if the database settings are changed. Be sure to validate your new settings before restarting the server.

Changing a Database Setting

To change a database setting:

  1. Browse to Settings > Application Settings.

  2. Click on the Settings accordion, then click Zones.

  3. Click the zone where the server is located.

  4. Click on the server.

  5. Click the Database tab.

  6. In the Database area, select the Type of database. You can select from External Database on another CFME appliance, External Postgres Database, and Internal Database on this CFME Appliance.

    • Use Hostname to specify the IP address or hostname of the external database server.

    • Use Database Name to specify the name of your VMDB.

    • Specify the User Name to connect to the VMDB.

    • Use Password and Verify Password to specify the password for the user name.

  7. Click Validate to check the settings.

  8. Click Save.

  9. Click OK to the warning that the server will restart immediately after you save the changes.

During the restart, you are unable to access the server. When the restart is complete, the new database settings are in effect.

Customization and Logos
Custom Logos

Use Custom Logos to display your own logo in the corner of the ManageIQ user interface and on the login screen. Use the procedures below to upload a custom logo to the user interface, and to customize the login background and login panel text on the user interface.

Note:

  • If you have upgraded from an earlier ManageIQ version and your custom logo was already in use before migration, although your logo image file is still in place in vmdb/public/upload you may have to uncheck and recheck the option to Use Custom Logo Image to re-enable displaying your custom logo. See Uploading a Custom Logo to the User Interface for the procedure on how to access the Use Custom Logo Image option, or if you want to upload another custom logo to the user interface and customize the login background image and login panel text.

  • Additionally, ensure the option to use configuration settings for the tenant under Access Control is set to Yes; see Displaying the Custom Configuration Settings for the procedure on how to set the configuration settings.

Uploading a Custom Logo to the User Interface

Note:

Make sure the desired logo is accessible from the computer where you are running the ManageIQ user interface. The file must be in portable network graphics (png) format with dimensions of 350 px x 70 px.

To upload a custom logo to the user interface:

  1. Browse to Settings > Application Settings.

  2. Click on the Settings accordion, then click Zones.

  3. Click the zone where the ManageIQ server is located.

  4. Click on the server.

  5. Click the Custom Logos tab. 2071

  6. In Custom Logo Image (Shown on top right of all screens), click Choose file to go to the location where the logo file is located.

  7. Click Upload. The icon is displayed above the file name box, and an option is shown to use the logo.

  8. Check Use Custom Logo Image to add the logo to your user interface.

  9. Click Save.

Note:

To enable displaying your custom logo, ensure the option to use configuration settings for the tenant under Access Control is set to Yes. See simpara_title for the procedure on how to set the configuration settings.

Customizing the Login Background

Note:

Make sure the background image that you want to use is accessible from the computer where you are running the user interface. The file must be in PNG format with dimensions of 1280 px x 1000 px.

To customize the login background:

  1. Browse to Settings > Application Settings.

  2. Click on the Settings accordion, then click Zones.

  3. Click the zone where the server is located.

  4. Click on the server.

  5. Click the Custom Logos tab.

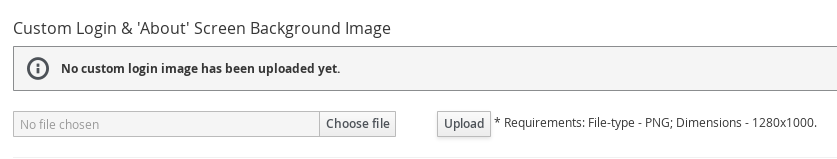

  6. In Custom Login & ‘About’ Screen Background Image, click Choose file to go to the location where the background image file is located.

    custom login about background

  7. Click Upload. The icon is displayed above the file name box, and an option is shown to use the logo.

  8. Check Use Custom Login Background Image to add the background image to the login screen of the user interface.

  9. Click Save.

Customizing the Login Panel Text

To customize the login panel text:

  1. Browse to Settings > Application Settings.

  2. Click on the Settings accordion, then click Zones.

  3. Click the zone where the server is located.

  4. Click on the server.

  5. Click the Custom Logos tab.

  6. In Custom Login Panel Text, enter the text that you want to display on the login screen.

  7. Click Use Custom Login Text to switch it to Yes. custom
login panel text

  8. Click Save.

Displaying the Custom Configuration Settings

To enable displaying your custom logo in the corner of the ManageIQ user interface and on the login screen:

  1. Browse to Settings > Application Settings.

  2. Click the Access Control accordion.

  3. Click Tenants, then click My Company.

  4. Click 1847(Configuration), then click 1851(Edit this item).

    use configuration
settings

  5. Click Use Configuration Settings to switch it to Yes.

  6. Click Save.

Advanced Settings

You may be instructed by Red Hat to edit some configuration settings manually. This feature is available for a limited number of options and can only be used by users assigned the super administrator role. Changing settings using this procedure may disable your ManageIQ server.

- Only make manual changes to your configuration files if directed to do so by Red Hat. - ManageIQ provides the ability to edit advanced configuration settings for all appliances through the **Advanced** tab from the user interface. You can also specify advanced settings for entire zones by clicking the **Advanced** tab at the zone level, with the advanced settings applied to individual appliances in that zone overriding zone-level settings when set.
Editing Configuration Files Manually

To edit configuration files manually:

  1. Click Configuration Configuration.

  2. Click on the Settings accordion, then click Zones.

  3. Click the zone where the server is located.

  4. You can click the Advanced tab at the zone level to set advanced configuration settings for the entire zone. Or, you can click on the server, and then click the Advanced tab to set advanced configuration settings at the server (appliance) level, which will override zone-level settings.

  5. Make the required changes to the configuration file.

  6. Click Save.

Configuration Parameters

Table: authentication

Parameters Description
amazon_key If using Amazon for the authentication mode, specify your Amazon Key. This is the same as Amazon Access Key in Configuration-Operations-Server-Amazon Settings in the appliance console. Default: blank
amazon_secret If using Amazon for the authentication mode, specify your Amazon Secret. This is the same as Amazon Secret Key in Configuration-Operations-Server-Amazon Settings in the appliance console. Default: blank
basedn If using ldap for the authentication mode, specify your Base DN. This is the same as Base DN in Configuration-Operations- Server-LDAP Settings in the appliance console. Default: blank
bind_dn The user name to bind to the LDAP server. This user must have read access to all users and groups that will be used for ManageIQ authentication and role assignment. This is the same as Bind DN in Configuration-Operations-Server-LDAP Settings in the appliance console. Default: blank
bind_pwd: The password for the bind_dn user. This is the same as Bind Password in Configuration-Operations- Server-LDAP Settings in the appliance console. Default: blank
get_direct_groups Use this to get the LDAP roles from the LDAP users’ home forest. This is the same as Get Roles from Home Forest in the Authentication page for the ManageIQ Server. Default: true
group_memberships_max_depth When traversing group memberships in the LDAP directory it will stop at this value. Default: 2
ldaphost Use ldaphost to specify the fully qualified domain name of your LDAP server. This is the same as LDAP Host Name in Configuration-Operations-Server-LDAP Settings in the appliance console. Default: blank
ldapport Specify the port of your LDAP server. This is the same as LDAP Port in Configuration-Operations- Server-LDAP Settings in the appliance console. Default: 389
mode Use database to use the VMDB for security. Use ldap or ldaps to use directory services. This is the same as Mode in Configuration-Operations-Server-Authentication in the appliance console. Default: database
user_type Use userprincipalname to type the user name in the format of user@domainname. Use mail to login with the user’s e-mail address. Use dn-cn for Distinguished Name (CN=<user>) or dn-uid Distinguished Name (UID=<user>) to use just the user name, but be sure to enter the proper user_suffix for either one. This is the same as User Type in Configuration-Operations- Server-LDAP Settings in the appliance console. Default: userprincipalname
user_suffix Domain name to be used with user_type of dn-cn or dn-uid. This is the same as User Suffix in Configuration-Operations- Server-LDAP Settings in the appliance console. Default: blank

Table: coresident_miqproxy

Parameters Description
use_vim_broker Specify if you want the coresident SmartProxy to use a shared connection through the VIM broker to communicate with the VC or ESX host for SmartState Analysis. If it is disabled, then each SmartProxy SmartState Analysis would create its own connection. Default: true
concurrent_per_ems Specify the number of co-resident SmartProxy SmartState Analyses that can be run against a specific management system at the same time. Default: 1
concurrent_per_host Specify the number of co-resident SmartProxy SmartState Analyses that can be run against a specific host at the same time. Default: 1
scan_via_host If you change scan_via_host to false, ManageIQ will use the Management System to scan which is limited by the concurrent_per_ems setting instead of the concurrent_per_host setting. Note this will greatly increase traffic to the Management System. Default: true

Table: ems_refresh

Parameters Description
capture_vm_created_on_date Set to false to turn off historical event retrieval. Set to true to turn on. By setting the flag to true ManageIQ will try to set the “ems_created_on” column in the vms table after an ems refresh for new VMs and any VMs with a nil “ems_created_on” value. ManageIQ looks at event information in our database as well as looking up historical event data from the management system. This is optional since the historical lookup could timeout. Default: false
collect_advanced_settings Set to false if you do not want to collect advanced Virtual Machine settings during a management system refresh. This will increase the speed of the refresh, but less data will be collected. If the parameter is not listed, then the value is true. Default: true
ec2
get_private_images For EC2 refreshes only; whether or not to retrieve private images. Default: true
get_public_images For EC2 refreshes only; whether or not to retrieve public images. Default: false. Warning: setting get_public_images to true loads several thousand images in the VMDB by default and may cause performance issues.
get_shared_images For EC2 refreshes only; whether or not to retrieve shared images. Default: true
public_images_filters For EC2 refreshes only; a filter to reduce the number of public images. Default: all public images
ignore_terminated_instances For EC2 refreshes only; whether or not to ignore terminated instances. Default: true
full_refresh_threshold The number of targeted refreshes requested before they are rolled into a full refresh. For example, if the system and/or the user target a refresh against 7 VMs and 2 Hosts (9 targets), when the refresh actually occurs it will do a partial refresh against those 9 targets only. However, if a 10th had been added, the system would perform a full EMS refresh instead. Default: 100
raise_vm_snapshot_complete_if_created_within: Raises vm_snapshot_complete event for a snapshot being added to VMDB only if the create time in Virtual Center is within the configured period of time. This prevents raising events for old snapshots when a new VC is added to ManageIQ. Default: 15.minutes
refresh_interval Scheduler does a periodic full EMS refresh every refresh_interval. Default: 24.hours

Table: host_scan

Parameters Description
queue_timeout Time period after which a host SmartState analysis will be considered timed out. Default: 20.minutes

Table: log

Parameters Description
level Specify the required level of logging for the ManageIQ appliance. Possible levels from most detailed to least detailed are: debug, info, warn, error, fatal. This is the same as Log Level in Configuration-Operations-Server-Logging in the appliance console and applies immediately to the evm log. Default: info
level_aws Specify the level of logging for Amazon Web Services communications. Possible levels from most detailed to least detailed are: debug, info, warn, error, fatal. This applies to the aws log. Default: info
level_aws_in_evm Specify what level of Amazon Web Services communication log should be also shown in evm log. Possible levels from most detailed to least detailed are: debug, info, warn, error, fatal. Default: error
level_fog Specify the level of logging for Fog communications. Possible levels from most detailed to least detailed are: debug, info, warn, error, fatal. This applies to the fog log. Default: info
level_fog_in_evm Specify what level of Fog communication log should be also shown in evm log. Possible levels from most detailed to least detailed are: debug, info, warn, error, fatal. Default: error
level_rails Specify the level of logging for Rails. Possible levels from most detailed to least detailed are: debug, info, warn, error, fatal. Once changed, this applies immediately to the production log. Default: info
level_rhevm Specify the level of logging for Red Hat communications. Possible levels from most detailed to least detailed are: debug, info, warn, error, fatal. This applies to the rhevm log. Default: warn
level_rhevm_in_evm Specify what level of Red Hat communication log should be also shown in evm log. Possible levels from most detailed to least detailed are: debug, info, warn, error, fatal. Default: error
level_vim Specify the level of logging for VIM (communication with VMware ESX and Virtual Center). Possible levels from most detailed to least detailed are: debug, info, warn, error, fatal. This applies to the vim log. Default: warn
level_vim_in_evm Specify what level of vim logging should be also shown in the evm log. Possible levels from most detailed to least detailed are: debug, info, warn, error, fatal. Default: error

Table: db_stats

Parameters Description
enabled Specify if you want to keep track of the number of queries, size of queries, number of responses, size of response, min/max for each, number of established connections at for each server process. This information will show in the EVM log. Default: false
log_frequency How frequently in seconds the process will log the database statistic in seconds. Default: 60

Table: callsites

Parameters Description
enabled Specify if you want keep track of the code that is accessing the database. Enabling call sites will decrease performance because of the amount of information tracked. The db_stats: enabled parameter must be set to true to use this. Default: false
depth Specify how many levels in the call stack to track for each database access. Default: 10
min_threshold Do not keep track of code that does not access the database this many times per log_frequency. Default: 10
path Set the path for the ManageIQ appliance log. This is the same as Log Path in Configuration-Operations- Server-Logging in the appliance console. Default: If no value is present, the path is /var/www/miq/vmdb/log.
line_limit Limit how many characters are retained in a single log line. 0 means no limit. Default: 0

Table: collection

Parameters Description

ping_depot

Whether to use TCP port ping to the log depot before performing log collection. Default: true

ping_depot_timeout

Specify how long in seconds to wait for response from log depot before deciding that the TCP port ping failed. Default: 20

current

When collecting logs, specifies what is considered current logging as opposed to archived logging. Default: :pattern:

log/*.log

log/apache/*.log

log/*.txt

config/*

/var/lib/pgsql/data/*.conf

/var/lib/pgsql/data/pg_log/*

/var/log/syslog*

/var/log/daemon.log*

/etc/default/ntp*

/var/log/messages*

/var/log/cron*

BUILD

GUID

VERSION

archive

Specifies what is considered archived logging. The default pattern is blank which means *.gz files in the log directory.

Table: log_depot

Parameters Description
uri Specify the URI for the log depot. This is the same as the URI in menu:Configuration[Diagnostics > Collect Logs] in the appliance console. Default: blank
username Specify the user name for the log depot. This is the same as the user ID in menu:Configuration[Diagnostics > Collect Logs] in the appliance console. Default: blank
password Specify the password for the user for the log depot. This is the same as the password in menu:Configuration[Diagnostics > Collect Logs] in the appliance console. Default: blank

Table: performance

Parameters Description
capture_threshold
vm Amount of time in minutes to wait after capture before capturing again. Default: 50.minutes
host Amount of time in minutes to wait after capture before capturing again. Default: 50.minutes
ems_cluster Amount of time in minutes to wait after capture before capturing again. Default: 50.minutes
storage Amount of time in minutes to wait after capture before capturing again. Default: 120.minutes
capture_threshold_with_alerts
host Amount of time in minutes to wait after capture before capturing again. This value is used instead of capture_threshold for Hosts that have alerts assigned based on real time Capacity & Utilization data. Default: 20.minutes
ems_cluster Amount of time in minutes to wait after capture before capturing again. This value is used instead of capture_threshold for clusters that have alerts assigned based on real time Capacity & Utilization data. Default: 50.minutes
vm Amount of time in minutes to wait after capture before capturing again. This value is used instead of capture_threshold for VMs that have alerts assigned based on real time Capacity & Utilization data. Default: 20.minutes
concurrent_requests
vm Amount of time in minutes to wait after capture before capturing again. This value is used instead of capture_threshold for VMs that have alerts assigned based on real time Capacity & Utilization data. Default: 20.minutes
hourly Number of concurrent VC requests to make when capturing hourly raw metrics. Default: 1
realtime Number of concurrent VC requests to make when capturing real time raw metrics. Default: 20
history
initial_capture_days How many days to collect data for on first collection. Default: 0
Keep_daily_performances How long to keep daily performance data in the VMDB. Default: 6.months
keep_realtime_performances How long to keep realtime performance data in the VMDB. Default: 4.hours
keep_hourly_performances How long to keep hourly performance data in the VMDB. Default: 6.months
purge_window_size When the purge needs to delete rows which are older than the keep_realtime_performances, keep_hourly_performances, and keep_daily_performances values, this value sets how many rows to delete in each batch. For example, a value of 1000 will cause us to issue ten 1,000 row deletes. Default: 1000

Table: repository_scanning

Parameters Description
defaultsmartproxy Specify the SmartProxy for repository scanning. This is the same as Default Repository Smartproxy in Configuration-Operations- Server-VM Server Control in the appliance console. Default: blank

Table: server

Parameters Description
case_sensitive_name_search Specify if you want the search by name on configuration item screens to be case senstive. Default: false
company Specify the label you want to use for your company’s tagging. This is the same as Company Name in Configuration-Operations- Server-Basic Info. Default: “My Company”
custom_logo Specify if you want to use a custom logo. This is the same as Use Custom Logo in Configuration-Custom Logo-Logo Selection. Default: false
events
disk_usage_gt_percent For ManageIQ operational alerts, specify at what threshold the disk usage alerts will be triggered. Default: 80
heartbeat_timeout How long to wait until the server heartbeat is considered timed out. if the timeout is exceeded, other appliances in the zone/region can vie for the roles active on the timed out ManageIQ appliance. Default: 2.minutes
host ManageIQ Server’s IP address. Default: blank
hostname ManageIQ Server’s hostname. Default: localhost.localdomain
listening_port Specify the port number on which the web server is listening. Note that this does not set the port that VMDB listens on. When deploying the SmartHost from the ManageIQ appliance, it tells the SmartHost (miqhost) what port to talk to the VMDB on. Default: “443”
mks_version Specify the version of the VMware MKS Plugin to use for the VM Console. This is the same as VMware MKS Plugin Version in Configuration-Operations- Server-VM Console. Default : 2.1.0.0
name Set the name to display for the ManageIQ appliance that you are logged on to in the appliance console. This is the same as appliance Name in Configuration-Operations- Server-Basic Information. Default : EVM
role Specify the roles for this ManageIQ Server, separated by commas without spaces. The possible values are automate, database_operations, ems_inventory, ems_metrics_collector, ems_metrics_coordinator, ems_metrics_processor, ems_operations, event, notifier, reporting, scheduler, smartproxy, smartstate, user_interface, web_services. This is the same as Server Roles in Configuration-Operations- Server- Server Control. Default: database_operations, event, reporting, scheduler, smartstate, ems_operations, ems_inventory, user_interface, web_services
session_store Where to store the session information for all web requests. The possible values are sql, memory, or cache. SQL stores the session information in the database regardless of the type of database server. Memory stores all the session information in memory of the server process. Cache stores the information in a memcache server. Default: cache
startup_timeout The amount of time in seconds that the server will wait and prevent logins during server startup before assuming the server has timed out starting and will redirect the user to the log page after login. Default: 300
vnc_port If using VNC for remote console, the port used by VNC. Default: 5800
zone Set the Zone for this appliance belongs. This is the same as Zone in Configuration-Operations- Server-Basic Information. Default : default
:worker_monitor Starts and monitors the workers. Parameters specified here will override those set in the workers:default section.
poll How often the worker monitor checks for work. This value only is only used when the worker has no more work to do from the queue. It will wait for an amount of time determined by the poll value and poll method. Therefore, if there is constant work on the queue, the worker will not wait in between messages. Default: 15.seconds
miq_server_time_threshold How much time to give the server to heartbeat before worker monitor starts to take action against non-responding server. Default: 2.minutes
nice_delta Tells the worker monitor what Unix “nice” value to assign the workers when starting. A lower number is less nice to other processes. Default: 1
sync_interval Time interval to sync active roles and configuration for all workers. Default: 30.minutes
wait_for_started_timeout How long to wait for a started worker to heartbeat before considering the worker timed out. Default: 10.minutes
kill_algorithm
name Criteria used to start killing workers. Default: used_swap_percent_gt_value
value Value of the criteria used. Default: 80
start_algorithm
name After server startup, criteria that must be met to decide if the ManageIQ Server can start a new worker. Default: used_swap_percent_lt_value
value Value of criteria used. Default: 60

Table: session

Parameters Description
interval Set the time interval in seconds for checking inactive sessions in appliance console. Default: 60
timeout Set the time period in seconds in which inactive console sessions are deleted. This is the same as Session Timeout in Configuration-Operations-Server-Authentication in the appliance console. Default: 3600
memcache_server If you choose memory for session_store, you need to specify the memcache_server to retrieve the session information from. Default: 127.0.1.1:11211
memcache_server_opts Options to send to memcache server. : blank
show_login_info Specify whether or not you want to see login info on start page. Default: true

Table: smartproxy_deploy

Parameters Description
queue_timeout Timeout for host smartproxy deploy job. Default: 30.minutes

Table: smtp

Parameters Description
host Specify the hostname of the smtp mail server. This is the same as Host in Configuration-Operations-Server-Outgoing SMTP E-mail Server. Default: localhost
port Specify the port of the smtp mail server. This is the same as Port in Configuration-Operations-Server-Outgoing SMTP E-mail Server. Default: “25”
domain Specify the domain of the smtp mail server. This is the same as Domain in Configuration-Operations-Server-Outgoing SMTP E-mail Server. Default: mydomain.com
authentication Specify the type of authentication of the smtp mail server. This is the same as Authentication in Configuration-Operations-Server-Outgoing SMTP E-mail Server. Default: login
user_name Specify the username required for login to the smtp mail server. This is the same as User Name in Configuration-Operations-Server-Outgoing SMTP E-mail Server. Default: evmadmin
password Specify the encrypted password for the user_name account. This is the same as Password in Configuration-Operations-Server-Outgoing SMTP E-mail Server. Default: blank
from Set the address that you want to send e-mails from. This is the same as From E-mail Address in Configuration-Operations-Server-Outgoing SMTP E-mail Server. Default: cfadmin@cfserver.com

Table: snapshots

Parameters Description
create_free_percent Ensures the % of free space available on the main datastore (datastore where vmx file is located) can support the % growth of the snapshot. The default is to require space for 100% of the provisioned size of all disks that are taking part in the snapshot. A value of 0 means do not check for space before creating the snapshot. Default: 100
remove_free_percent Ensures the % of free space available on the main datastore (datastore where vmx file is located) has the % free space available to support the snapshot deletion process. Note that the deletion process consists of first composing a new snapshot then removing it once the original snapshot to be deleted has been collapsed in the VM. The default is to require 100% of the size of all disks to complete this process. A value of 0 means do not check for space before removing the snapshot. Default: 100

Table: webservices

Parameters Description
contactwith Set to ipaddress to contact miqhost using the IP address. Set to hostname to contact miqhost by its hostname. Set to resolved_ipaddress to take the hostname and resolve it to an IP address. Default: ipaddress
mode Set to invoke to use webservices. Set to disable to turn off webservices. This is the same as Mode in Configuration-Operations- Server-Web Services in the appliance console. Default: invoke
nameresolution If set to true, the hostname will be resolved to an IP address and saved with the host information in the VMDB. Default: false
security If Web Services are enabled, you can set this to ws-security. This is the same as Security in Configuration-Operations- Server-Web Services in the appliance console. Note: This is not currently supported. Default: none
timeout Specify the web service timeout in seconds. Default: 120
password Specify the encrypted password for the user_name account. This is the same as Password in Configuration-Operations-Server-Outgoing SMTP E-mail Server. Default: blank
use_vim_broker Controls if the vim_broker is used to communicate with VMware infrastructure. Default: true

Table: workers

Parameters Description
worker_base
defaults If the following parameters are NOT explicitly defined for a specific worker, then these values will be used.
count Number of this type of worker. Default: 1
gc_interval How often to do garbage collection for this worker. Default: 15.minutes
poll How often the workers checks for work. This value only is only used when the worker has no more work to do from the queue. It will wait for an amount of time determined by the poll value and poll method. Therefore, if there is constant work on the queue, the worker will not wait in between messages. Default: 3.seconds
poll_method If set to normal, the worker checks for work the number of seconds set in the poll parameter. If set to escalate, the worker will increase the time between checks when there is no work to be done. Default: normal
poll_escalate_max The maximum number of time to wait between checks for work. Poll_method must be set to escalate for this option to be used. Default: 30.seconds
heartbeat_freq How often to “heartbeat” the worker. Default: 60.seconds
heartbeat_method Set which way to dispatch work. Possible values are sql or drb. Default: drb
heartbeat_timeout How long to wait until the worker heartbeat is considered timed out. Default: 2.minutes
parent_time_threshold How long to allow the parent to go without heartbeating before considering the “parent’ not responding. For workers, the worker monitor is the parent. For Worker monitor, the Server is the parent. Default: 3.minutes
memory_threshold How much memory to allow the worker to grow to before gracefully requesting it to exit and restart. Default: 150.megabytes
nice_delta Tells the worker monitor what Unix “nice” value to assign the workers when starting. A lower number is less nice to other processes. Default: 10
restart_interval How long to let a worker remain up before asking it to restart. All queue based workers are set to 2.hours and every other worker does not get restarted by a 0.hours value. Default: 0.hours
starting_timeout How long to wait before checking a worker’s heartbeat when it is starting up to mark it as not responding, similar to a grace period before you begin monitoring it. Default: 10.minutes
event_catcher Associated with Event Monitor Server Role. Captures ems events and queues them up for the event_handler to process. Parameters specified here will override those set in the worker_base:default section.
ems_event_page_size Internal system setting which sets the maximum page size for the event collector history. This should not be modified. Default: 100
ems_event_thread_shutdown_timeout Internal system setting which determines how long the event catcher at shutdown will wait for the event monitor thread to stop. This should not be modified. Default: 10.seconds
memory_threshold How much memory to allow the worker to grow to before gracefully requesting it to exit and restart. Default: 2.gigabytes
nice_delta Tells the worker monitor what Unix “nice” value to assign the workers when starting. A lower number is less nice to other processes. Default: 1
poll How often the workers checks for work. This value only is only used when the worker has no more work to do from the queue. It will wait for an amount of time determined by the poll value and poll method. Therefore, if there is constant work on the queue, the worker will not wait in between messages. Default: 1.seconds
event_catcher_redhat Contains settings that supersede the event_catcher for event_catcher_redhat.
event_catcher_vmware Contains settings that supersede the event_catcher for event_catcher_vmware.
poll How often the workers checks for work. This value only is only used when the worker has no more work to do from the queue. It will wait for an amount of time determined by the poll value and poll method. Therefore, if there is constant work on the queue, the worker will not wait in between messages. Default: 1.seconds
event_catcher_openstack Contains settings that supersede the event_catcher for event_catcher_openstack.
poll How often the workers checks for work. This value only is only used when the worker has no more work to do from the queue. It will wait for an amount of time determined by the poll value and poll method. Therefore, if there is constant work on the queue, the worker will not wait in between messages. Default: 15.seconds
topics List of AMQP topics that should be monitored by ManageIQ when gathering events from OpenStack.
duration Qpid Specific. Length of time (in seconds) the receiver should wait for a message from the Qpid broker before timing out. Default: 10.seconds
capacity Qpid Specific. The total number of messages that can be held locally by the Qpid client before it needs to fetch more messages from the broker. Default: 50.seconds
amqp_port Port used for AMQP. Default: 5672
schedule_worker Settings for Scheduler Server Role and any other work that runs on a schedule. Parameters specified here will override those set in the worker_base:default section.
db_diagnostics_interval How frequently to collect database diagnostics statistics. Default: 30.minutes
job_proxy_dispatcher_interval How often to check for available SmartProxies for SmartState Analysis jobs. Default: 15.seconds
job_proxy_dispatcher_stale_message_check_interval How often to check for the dispatch message in the queue Default: 60.seconds
job_proxy_dispatcher_stale_message_timeout Kill a message if this value is reached. Default: 2.minutes
job_timeout_interval How often to check to see if a job has timed out. Default: 60.seconds
license_check_interval How often to check for valid license. Default: 1.days
memory_threshold How much memory to allow the worker to grow to before gracefully requesting it to exit and restart. Default: 150.megabytes
nice_delta Tells the worker monitor what Unix “nice” value to assign the workers when starting. A lower number is less nice to other processes. Default: 3
performance_collection_interval Controls how often the schedule worker will put performance collection request on the queue to be picked up by the collection worker. Default: 3.minutes
performance_collection_start_delay How long after ManageIQ Server has started before starting capacity and utilization collection, if collection needs to be done. Default: 5.minutes
poll How often the workers checks for work. This value only is only used when the worker has no more work to do from the queue. It will wait for an amount of time determined by the poll value and poll method. Therefore, if there is constant work on the queue, the worker will not wait in between messages. Default: 15.seconds
server_logs_stats_interval How often to log the ManageIQ Server statistics. Default: 5.minutes
server_stats_interval How often to collect the ManageIQ Server statistics. Default: 60.seconds
session_timeout_interval How often to check to see if a UI (appliance console) session has timed out. Default: 30.seconds
storage_file_collection_interval How often to perform file inventory of storage locations. Default: 1.days
storage_file_collection_time_utc What time to perform file inventory of storage locations. Default: “06:00”
vdi_refresh_interval How often to refresh vdi inventory. Default: 20.minutes
vm_retired_interval How often to check for virtual machines that should be retired. Default: 10.minutes
vm_scan_interval How often to check virtual machines to see if scan needs to be done. Default: 10.minutes
smis_refresh_worker Settings for Storage Inventory Server Role and any other work that runs on a schedule. Parameters specified here will override those set in the worker_base:default section
poll How often the workers checks for work. This value only is only used when the worker has no more work to do from the queue. It will wait for an amount of time determined by the poll value and poll method. Therefore, if there is constant work on the queue, the worker will not wait in between messages. Default: 15.seconds
connection_pool_size Maximum number of database connections allowed per process. Default: 5
memory_threshold How much memory to allow the worker to grow to before gracefully requesting it to exit and restart. Default: 1.gigabytes
nice_delta Tells the worker monitor what Unix “nice” value to assign the workers when starting. A lower number is less nice to other processes. Default: 3
smis_update_period How frequently to update smis information. Default: 1.hours
status_update_period How frequently to update smis status. Default: 5.minutes
stats_update_period How frequently to update smis statistics. Default: 10.minutes
vim_broker_worker Launched for any of these roles: Capacity & Utilization Collector, SmartProxy, SmartState Analysis, Management System Operations, Management System Inventory. Also launched if the use_vim_broker setting is on. Provides connection pooling, caching of data to and from the VMware infrastructure. Parameters specified here will override those set in the workers:default section.
heartbeat_freq How often to heartbeat the worker. Default: 15.seconds
memory_threshold How much memory to allow the worker to grow to before gracefully requesting it to exit and restart. Default: 1.gigabytes
nice_delta Tells the worker monitor what Unix “nice” value to assign the workers when starting. A lower number is less nice to other processes. Default: 3
poll How often the workers checks for work. This value only is only used when the worker has no more work to do from the queue. It will wait for an amount of time determined by the poll value and poll method. Therefore, if there is constant work on the queue, the worker will not wait in between messages. Default: 1.seconds
reconnect_retry_interval Period after which connection is retried. Default: 5.minutes
vim_broker_status_interval Internal system setting which configures how much time to wait after receiving event updates before checking for more updates. Default: 0.seconds
wait_for_started_timeout Time between the worker’s preload and startup time before considering the worker timed out. Default: 10.minutes
ui_worker: Settings for User Interface Server Role. Parameters specified here will override those set in the worker_base:default section.
connection_pool_size Maximum number of database connections allowed per process. Default: 5
memory_threshold How much memory to allow the worker to grow to before gracefully requesting it to exit and restart. Default: 1.gigabytes
nice_delta: 1 Tells the worker monitor what Unix “nice” value to assign the workers when starting. A lower number is less nice to other processes. Default: 1
poll How often the workers checks for work. This value only is only used when the worker has no more work to do from the queue. It will wait for an amount of time determined by the poll value and poll method. Therefore, if there is constant work on the queue, the worker will not wait in between messages. Default: 60.seconds
web_service_worker Settings for Web Services Server Role. Parameters specified here will override those set in the worker_base:default section.
connection_pool_size Maximum number of database connections allowed per process. Default: 5
memory_threshold How much memory to allow the worker to grow to before gracefully requesting it to exit and restart. Default: 1.gigabytes
nice_delta Tells the worker monitor what Unix “nice” value to assign the workers when starting. A lower number is less nice to other processes. Default: 1
poll How often the workers checks for work. This value only is only used when the worker has no more work to do from the queue. It will wait for an amount of time determined by the poll value and poll method. Therefore, if there is constant work on the queue, the worker will not wait in between messages. Default: 60.seconds
queue_worker_base Base class of all queue workers that work off of the queue..
defaults If the following parameters are NOT explicitly defined for a queue worker, then these values will be used.
cpu_usage_threshold How much cpu to allow the worker to grow to before gracefully requesting it to exit and restart. Default: 100.percent
queue_timeout How long a queue message can be worked on before it is considered timed out. Default: 10.minutes
memory_threshold How much memory to allow the worker to grow to before gracefully requesting it to exit and restart. Default: 400.megabytes
restart_interval Queue workers restart interval. Default: 2.hours
poll_method If set to normal, the worker checks for work the number of seconds set in the poll parameter. If set to escalate, the worker will increase the time between checks when there is no work to be done. Default: normal
generic_worker Performs work that is not classified as any specific type of work. Processes all normal priority or non-specific queue items. Parameters specified here will override those set in the queue_worker_base:default section
count Number of this type of worker. Default: 4
ems_refresh_worker Performs all ems (management system) refreshes to keep the vmdb in sync with the state of the components of the virtual infrastructure in the various management systems. Parameters specified here will override those set in the queue_worker_base:default section
poll How often the workers checks for work. This value only is only used when the worker has no more work to do from the queue. It will wait for an amount of time determined by the poll value and poll method. Therefore, if there is constant work on the queue, the worker will not wait in between messages. Default: 10.seconds
memory_threshold How much memory to allow the worker to grow to before gracefully requesting it to exit and restart. Default: 2.gigabytes
nice_delta Tells the worker monitor what Unix “nice” value to assign the workers when starting. A lower number is less nice to other processes. Default: 7
restart_interval Queue workers restart interval. Default: 2.hours
queue_timeout How long a message can be worked on before it is considered timed out. Default: 120.minutes
event_handler Associated with Event Monitor Server Role. Handles all events caught by the event catcher worker. Parameters specified here will override those set in the workers:default section. Parameters specified here will override those set in the queue_worker_base:default section
cpu_usage_threshold How much cpu to allow the worker to grow to before gracefully requesting it to exit and restart. The value of 0 means that this worker will never be killed due to CPU usage. Default: 0.percent
nice_delta Tells the worker monitor what Unix “nice” value to assign the workers when starting. A lower number is less nice to other processes. Default: 7
perf_collector_worker Connects to VC/ESX to collect the raw performance data. Same as the Capacity & Utilization Data Collector Server Role. Parameters specified here will override those set in the queue_worker_base:default section count. Number of this type of worker. Default: 2
count Number of this type of worker. Default: 2
poll_method If set to normal, the worker checks for work the number of seconds set in the poll parameter. If set to escalate, the worker will increase the time between checks when there is no work to be done. Default: escalate
nice_delta Tells the worker monitor what Unix “nice” value to assign the workers when starting. A lower number is less nice to other processes. Default: 3
perf_processor_worker Processes the raw performance data into a reportable format. Same as the Capacity & Utilization Data Processor Server Role. Parameters specified here will override those set in the queue_worker_base:default section
count Number of this type of worker. Default: 2
poll_method If set to normal, the worker checks for work the number of seconds set in the poll parameter. If set to escalate, the worker will increase the time between checks when there is no work to be done. Default: escalate
memory_threshold How much memory to allow the worker to grow to before gracefully requesting it to exit and restart. Default: 400.megabytes
nice_delta Tells the worker monitor what Unix “nice” value to assign the workers when starting. A lower number is less nice to other processes. Default: 7
priority_worker Performs all high priority queue items including many tasks on behalf of the UI. UI requests are normally executed by a priority worker so they will not to block the UI. Parameters specified here will override those set in the queue_worker_base:default section
count Number of this type of worker. Default: 2
memory_threshold How much memory to allow the worker to grow to before gracefully requesting it to exit and restart. Default: 200.megabytes
nice_delta Tells the worker monitor what Unix “nice” value to assign the workers when starting. A lower number is less nice to other processes. Default: 1
poll How often the workers checks for work. This value only is only used when the worker has no more work to do from the queue. It will wait for an amount of time determined by the poll value and poll method. Therefore, if there is constant work on the queue, the worker will not wait in between messages. Default: 1.seconds
reporting_worker Compiles reports. Settings for Reporting Server Role. Parameters specified here will override those set in the queue_worker_base:default section
count Number of this type of worker. Default: 2
nice_delta Tells the worker monitor what Unix “nice” value to assign the workers when starting. A lower number is less nice to other processes. Default: 7
smart_proxy_worker Performs the embedded scanning of virtual machines. Settings for SmartProxy Server Role. Parameters specified here will override those set in the queue_worker_base:default section
count Number of this type of worker. Default: 3
memory_threshold How much memory to allow the worker to grow to before gracefully requesting it to exit and restart. Default: 600.megabytes
queue_timeout How long a queue message can be worked on before it is considered timed out. Default: 20.minutes
restart_interval Queue workers restart interval. Default: 2.hours

Schedules

Scheduling SmartState Analyses

From the Schedules area in Settings, you can schedule the analyses of virtual machines, hosts, clusters, and datastores to keep the information current. Depending on which resource you want to analyze, you can filter which ones to analyze. You may also specify only one virtual machine or perform an analysis on all virtual machines. In addition, you can schedule compliance checks, and database backups.

Scheduling a SmartState Analysis or Compliance Check

To schedule a SmartState Analysis or Compliance Check:

  1. Browse to Settings > Application Settings.

  2. Click on the Settings accordion, then click Schedules.

  3. Click 1847(Configuration), and plus
green(Add a new Schedule).

  4. In the Basic Information area, type in a Name and Description for the schedule.

  5. Select Active to enable this scan.

  6. From the Action list, select the type of analysis to schedule. Based on the type of analysis you choose, you are presented with one of the following group boxes: 2079

    • VM Analysis: Displays VM Selection where you can choose to analyze All VMs, All VMs for Provider, All VMs for Cluster, All VMs for Host, A single VM, or Global Filters.

    • Template Analysis: Displays Template Selection where you can choose to analyze All Templates, All Templates for Provider, All Templates for Cluster, All Templates for Host, A single Template, or Global Filters.

    • Host Analysis: Displays Host Selection where you can choose to analyze All Hosts, All Hosts for Provider, A single Host, or Global Filters.

      Note:

      You can only schedule host analyses for connected virtual machines, not repository virtual machines that were discovered through that host. Since repository virtual machines do not retain a relationship with the host that discovered them, there is no current way to scan them through the scheduling feature. The host is shown because it may have connected virtual machines in the future when the schedule is set to run.

    • Cluster / Deployment Role Analysis: Displays Cluster Selection where you can choose to analyze All Clusters, All Clusters for Provider, or A single Cluster.

    • Datastore Analysis: Displays Datastore Selection where you can choose to analyze All Datastores, All Datastores for Host, All Datastores for Provider, A single Datastore, or Global Filters.

    • VM Compliance Check: Displays VM Selection where you can choose to analyze All VMs, All VMs for Provider, All VMs for Cluster, All VMs for Host, A single VM, or Global Filters.

    • Host Compliance Check: Displays Host Selection where you can choose to analyze All Hosts, All Hosts for Provider, All Hosts for Cluster, A single Host, or Global Filters.

    • Database Backup: Under Type, displays Network File System, Samba, Amazon AWS S3 and OpenStack Swift..

  7. By applying Global Filters within any of the above items, you can designate which virtual machines or hosts to analyze.

  8. In Run, set the frequency of the analysis to run. There are further options based on which Run option you choose.

    • Click Once to have the analysis run only one time.

    • Click Daily to run the analysis on a daily basis. You will be prompted to select the number of days between each analysis.

    • Click Hourly to run the analysis hourly. You will be prompted to select the number of hours between each analysis.

  9. Select a Time Zone.

    Note:

    If you change the Time Zone, you will need to reset the stating date and time.

  10. Type or select a date to begin the schedule in Starting Date.

  11. Select a Starting Time based on a 24 hour clock in the selected Time Zone.

  12. Click Add.

Modifying a Schedule

To modify a schedule:

  1. Browse to Settings > Application Settings.

  2. Click on the Settings accordion, then click Schedules.

  3. Click the schedule that you want to edit.

  4. Click 1847 (Configuration), and then click 1851 (Edit this Schedule).

  5. Make the required changes.

  6. Click Save.

Importing and Exporting Schedules

ManageIQ provides the ability to import and export schedules using the import_export_schedules.rb script:

./var/www/miq/vmdb/tools/import_export_schedules.rb -h
Option Description
-u, –user=<s> userid (default: admin)
-d, –output-dir=<s> Output directory (default: ./)
-s, –schedule=<s> Schedule name or id
-o, –operation=<s> Export or import (default: export)
-y, –import-yaml=<filename/uri> Imported yaml
-h, –help Show this message

Usage Example.

Import:

./var/www/miq/vmdb/tools/import_export_schedules.rb -o import -y ./filename.yaml

Export:

./var/www/miq/vmdb/tools/import_export_schedules.rb -s 158

Note that the import_export_schedules.rb script works for all types of schedules, including:

  • Report

  • Policy

  • Alert

  • SmartState Analysis

  • Automation Task

  • Service Template

Access Control

Browse to Settings > Application Settings. Click on the Access Control accordion to see a hierarchy of the configurable items for users, groups, roles, and tenants. You can add and modify users, groups, account roles, tenants, and projects.

Creating a Tenant

Tenants are used in ManageIQ for controlling visibility of objects.

To create a tenant:

  1. Browse to Settings > Application Settings.

  2. Click on the Access Control accordion, then click Tenants.

  3. Click on the top-level Tenant, click 1847 (Configuration), and plus green (Add child Tenant to this Tenant) to create a tenant.

  4. Enter a name for the tenant in the Name field.

  5. Enter a description for the tenant in the Description field.

  6. Click Add.

Creating a Project

A tenant can also contain a self-contained child tenant known as a ‘project’. A project cannot have a child tenant, but it is useful for allocating resources to a small group or team within a larger organization.

To create a project:

  1. Browse to Settings > Application Settings.

  2. Click on the Access Control accordion, then click Tenants.

  3. Click on the Tenant where you want to add a Project, click 1847 (Configuration), and plus
green (Add Project to this Tenant) to create a project.

  4. Enter a name for the project in the Name field.

  5. Enter a description for the project in the Description field.

  6. Click Add.

Managing Tenant and Project Quotas

Use the following procedure to allocate or edit quotas for tenants and projects.

Note:

Quota is allocated based on the user’s current group. If the user belongs to multiple groups, you must change to the desired group before allocating or editing group quota. See Groups for more details.

  1. Browse to Settings > Application Settings.

  2. Click on the Access Control accordion, then click Tenants.

  3. Click on the Tenant or Project where you want to add a quota, click 1847 (Configuration), and 1851 (Manage quotas for the Selected Item) to create a quota.

  4. In the list of pre-built quotas, switch Enforced next to the quota item you want to enable to Yes.

  5. In the Value field, enter the constraints you want to apply to the quota. manage quotas

  6. Click Save.

Tagging Tenants and Projects

To tag tenants and projects:

  1. Browse to Settings > Application Settings.

  2. Click on the Access Control accordion, then click Tenants.

  3. Select the tenant or project, then click Policy, and select Edit My Company Tags for this Tenant.

  4. In Tag Assignment, click Select a customer tag to assign, and select a tag from the list. In the next column, set a corresponding value.

  5. Click Save.

Creating a User

To create a user:

  1. Browse to Settings > Application Settings.

  2. Click on the Access Control accordion, then click Users.

  3. Click 1847 (Configuration), and plus
green (Add a new User) to create a user.

  4. Enter a Full Name, Username, Password with confirmation, and Email Address for the user. An email address is required; omitting the user email address can result in unsuccessful provisioning requests.

    available groups

    - If you are using LDAP, but did not enable **Get User Groups from LDAP** in your server’s **Authentication** tab, you will need to define a user. The UserID must match exactly the user’s name as defined in your directory service. Use all lowercase characters to ensure the user can be found in the VMDB. - When the user logs in, they use their LDAP password.
  5. Select one or more groups from Available Groups.

  6. Click Add.

Deleting a User

For security reasons, delete any user that no longer needs access to the information or functions of the server.

To delete a user:

  1. Browse to Settings > Application Settings.

  2. Click on the Access Control accordion, then click Users.

  3. Select the user you want to delete.

  4. Click 1847 (Configuration), and gui
delete (Delete selected Users) to delete a user.

Groups

User groups create filters and assign roles to users. You can either create your own groups, or leverage your LDAP directory service to assign groups of users to account roles. For a list of what each pre-defined account role can do, see Roles.

A user can exist in multiple groups. However, a group can only be assigned one account role.

If you belong to multiple groups, you can change the current group. The Current Group affects quota and other settings for the user, including permissions for controlling the tasks that you can complete and the data that you can view. To change the group, click the group name in the upper left of the screen, and select your preferred group from the listed groups.

change group

Creating a Group

To create a user group:

  1. Browse to Settings > Application Settings.

  2. Click on the Access Control accordion, then click Groups.

  3. Click 1847 (Configuration), and plus
green (Add a new Group) to create a group.

  4. Enter a name for the group in the Name field. To ensure compatibility with tags, use underscores in place of spaces. For example, ManageIQ-test_group.

  5. Select a Role to map to this group. For a description of each ManageIQ role, see Account Roles and Descriptions.

  6. Select the Project/Tenant this group must belong to.

  7. Limit what users in this group can view by selecting filters in the Assign Filters area.

    1. Click the <My Company> Tags tab to select the tags that users in this group can access. Resources with the selected tags attached can be accessed by this group. Select tags using one of the options in the This user is limited to list:

      • Select Specific Tags, then check the boxes for the tags that you want to limit this user to. The items that have changed will show in blue italicized font.

      • Select Tags Based On Expression, then create tags based on an expression using AND, OR, or NOT. This allows you to further limit the resources accessible to a user: for example, to specify a combination of tags that must exist on a resource. tag expression
editor

    2. Click the Host & Clusters tab.

      1. Check the boxes for the host and clusters that you want to limit this user to. The items that have changed will show in blue italicized font. 2088
    3. Click the VMs & Templates tab. This shows folders that you have created in your virtual infrastructure.

      1. Check the boxes for the folders that you want to limit this user to. The items that have changed will show in blue italicized font.
  8. Click Add.

After creating a group, assign one or more users to the group by editing a user.

Roles

When you create a group, you must specify a role to give the group rights to resources in the console. The group’s role determines the scope of access for the users that are members of the group.

general config roles jcs

ManageIQ provides a default group of roles, but you can also create your own, or copy and edit the default groups.

Note:

If you have enabled Get Role from LDAP under LDAP Settings, then the role is determined by the LDAP user’s group membership in the directory service.

To view details of a role and its level of access:

  1. Browse to Settings > Application Settings.

  2. Click on the Access Control accordion, then click Roles.

  3. Click on a role from the list to display role information and the product features the role can access (marked by a checkmark). You can expand the categories under Product Features to see further detail.

The table below shows a summary of the functions available to each role.

Account Roles and Descriptions
Role Description
Administrator Administrator of the virtual infrastructure. Can access all infrastructure functionality. Cannot change server configuration.
Approver Approver of processes, but not operations. Can view items in the virtual infrastructure, view all aspects of policies and assign policies to policy profiles. Cannot perform actions on infrastructure items.
Auditor Able to see virtual infrastructure for auditing purposes. Can view all infrastructure items. Cannot perform actions on them.
Container Administrator Administrator with capabilities to configure, view and execute tasks on all containers and related underlying infrastructure. Has access to Nodes, Pods and Projects dashboards.
Container Operator This role can view and execute tasks related to containers and related underlying infrastructure. The Container Operator has access to locked versions of the same dashboards as the Container Administrator.
Desktop Access to VDI pages.
Operator Performs operations of virtual infrastructure. Can view and perform all functions on virtual infrastructure items including starting and stopping virtual machines. Cannot assign policy, but can view policy simulation from Virtual Machine page.
Security Enforces security for the virtual environment. Can assign policies to policy profiles, control user accounts, and view all parts of virtual infrastructure. Cannot create policies or perform actions on virtual infrastructure.
Super Administrator Administrator of ManageIQ and the virtual infrastructure. Can access all functionality and configuration areas.
Support Access to features required by a support department such as diagnostics (logs). Can view all infrastructure items and logs. Cannot perform actions on them.
Tenant Administrator Configures settings applicable to a Tenant. Sets Branding, maps groups/roles, configures LDAP credentials, and configures dashboard settings.
Tenant Quota Administrator Configures quota limits for the tenant, applying usage constraints for CPU, Memory, Storage, Maximum number of VMs, and Maximum number of Templates.
User User of the virtual infrastructure. Can view all virtual infrastructure items. Cannot perform actions on them.
User Limited Self Service Limited User of virtual machines. Can make provision requests. Can access some functions on the virtual machine that the user owns including changing power state.
User Self Service User of virtual machines. Can make provision requests. Can access some functions on the virtual machine that the user owns and that the user’s LDAP groups own including changing power state.
Vm User User of virtual machines. Can access all functions on the virtual machine including changing power state and viewing its console. Cannot assign policy, but can view policy simulation from virtual machine page.

Creating a Role

To create a role:

  1. Click Settings > Application Settings.

  2. Click on the Access Control accordion, then click Roles.

  3. Click Configuration, and plus
green Add a new Role. Alternatively, you can copy an existing role to a new role by clicking Copy the selected Role to a new Role.

  4. In the Role Information area, type a name for the new role. For Access Restriction for Catalog Items, Orchestration Stacks, Key Pairs, Services, VMs, and Templates, select if you want to limit users with this role to only see resources owned by the user or their group, owned by the user, or all resources (None): role info

  5. Under Product Features (Editing), navigate to the appropriate feature and enable or disable it: product features
editing

  6. Click Add.

Diagnostics

Browse to Settings > Application Settings. Click on the Diagnostics tab to see the status of the different ManageIQ roles and workers for each server, view and collect logs, and gather data if there are any gaps in capacity and utilization information. The Diagnostics area is designed in a hierarchy.

  • At the region level, you can see replication status, backup the VMDB, and run garbage collection on the VMDB.

  • At the zone level, you can see ManageIQ roles by servers and servers by roles. In addition, you can set log collection values for a specific zone, and collect gap data for capacity and utilization.

  • At the server level, you can see the workers for each server, set log collection values for a specific server, and view current logs.

Region Diagnostics

Using the console, you can set the priority of server regional roles, review and reset replication, and create backups of your database either on demand or on a schedule.

Regions are used primarily to consolidate multiple VMDBs into one master VMDB for reporting while zones are used to define functional groups of servers. There can be only one region per VMDB, but multiple zones per region (or VMDB). Some server roles are aware of each other across ManageIQ appliances at the region level. This means that redundancy and failover rules apply at the region level. You can also set priorities for the server roles that provide failover.

Server Role Priorities

If you have multiple servers in your environment with duplicate failover roles, then you can set the priority of the server role.

  • Only server roles that support failover can be marked as primary. These roles only allow one server to be active at a time. These are Notifier, Capacity & Utilization Coordinator, Event Monitor, Scheduler, Storage Inventory, and Provider Inventory.

  • All other server roles are additive. The more servers with that role in a zone the more work that can be performed.

There are three role priorities.

  • Primary: There can only be one primary per zone or region per role. When an appliance is started, the system looks to see if any role is set to primary. If that is the case, the role is activated on that appliance and deactivated from the secondary. In the console, primary roles are shown in bold letters. The text turns red if the server goes down. You must actively set the primary priority.

  • Secondary: This is the default priority. There can be multiple secondaries. When an appliance is started, if no primary is found in the zone, the first appliance to start takes the role. In the console, secondary roles are displayed normally with the word “secondary”.

  • Tertiary: If all appliances with primary roles or secondary roles were down, one of the tertiary would be activated. The reason for tertiary is to ensure that if a server with crucial roles such as Provider Inventory or Event Monitor goes down, you have a way to associate those roles to different appliances by organizing the priorities. Tertiary roles simply show as active in the console.

Region Aware Server Roles

Role More than one per Region Can have Priority Set
Automation Engine Y N
Database Operations Y N
Notifier N Y
Reporting Y N
Scheduler N Y
User Interface Y N
Web Services Y N

Setting the Priority of a Failover Role

To set the priority of a failover role:

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Depending on how you want to view your servers, click either the Roles by Servers tab or the Servers by Roles tab.

  4. In the Status of Roles for Servers in Zone Default Zone area, click on the role that you want to set the priority for.

  5. Click 1847 (Configuration), and 2097 (Promote Server) to make this the primary server for this role.

  6. Click 1847 (Configuration), and gui
delete (Demote Server) to demote the priority of this server for this role.

Zone Diagnostics

The console provides a way to see all the server roles that a server has been assigned and if these roles are running. This is especially helpful when you have multiple servers with different server roles. For each zone you can also set a central place for all logs to be collected, and collect capacity and utilization data that may be missing.

Viewing the Status of Server Roles

To view the status of server roles:

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Depending on how you want to view your servers, click either Roles by Servers or the Servers by Roles.

Zone Aware Server Roles
Role More than one per Region Can have Priority Set
Automation Engine Y N
Capacity & Utilization Coordinator N Y
Capacity & Utilization Data Collector Y N
Capacity & Utilization Data Processor Y N
Database Operations Y N
Event Monitor N Y
Provider Inventory N Y
Provider Operations Y N
Notifier N Y
Reporting Y N
Scheduler N Y
SmartProxy Y N
SmartState Analysis Y N
User Interface Y N
Web Services Y N
Removing an Inactive Server

To remove an inactive server:

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Click on the name of the server in the tree view.

  4. Click gui delete (Delete Server). This button is available only if the server is inactive.

Zone Log Collections

If you have multiple servers reporting to one central VMDB, then you can collect the configuration files and logs from the console of any of the servers. While you can set this either at the zone or server level, settings at the server level supersede the ones at the zone level.

Log depot options include:

  • Anonymous File Transfer Protocol (FTP)

  • File Transfer Protocol (FTP)

  • Network File System (NFS)

  • Red Hat Dropbox

  • Samba

See your network administrator if you need to set up one of these shares. You will also need a user that has write access to that location.

Setting the Location of the Log Depot

To set the location of the log depot:

  1. Browse to Settings > Application Settings.

  2. Click the Diagnostics accordion, then click the Zone that you want to view.

  3. Click Collect Logs.

  4. Click 1851(Edit).

  5. Select the Type of share. 1851

  6. Using the fully qualified domain name (FQDN) of the depot server, type in the appropriate settings for the URI.

    6254

  7. If required, enter your user ID and password then click Validate to confirm the settings.

  8. Click Save.

Collecting and Downloading Logs from All Servers in a Zone

To collect and download logs from all servers in a zone:

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Click the Collect Logs tab.

  4. Click 2104(Collect all logs). All files in the logs directory as well as configuration files are collected from the selected zone.

  5. Click OK. The status of the log retrieval shows in the ManageIQ console.

Capacity and Utilization Repair

Under certain circumstances, it is possible that ManageIQ is not able to collect capacity and utilization data. This could be due to password expiration, a change in rights to the cloud provider and this change didn’t provide enough granularity to the ManageIQ service account, or network connectivity. The gap data is collected directly by extracting the monthly performance data. Gap collection need to be completed for each zone individually. Therefore, the procedure below need to be repeated for each zone.

Repairing Capacity and Utilization Data

To repair capacity and utilization data:

  1. Log in to a ManageIQ appliance located in the zone for which you want to gather the data.

  2. Browse to Settings > Application Settings.

  3. Click on the Diagnostics accordion, then click the Zone that you want to view.

  4. Click C & U Gap Collection.

    1. Select the appropriate Timezone.

      Note:

      Do not select more than one week unless instructed to do so by Red Hat Support.

    2. Select a Start Date.

    3. Select an End Date.

  5. Click Submit.

After the gap collection has completed for this zone, repeat these same steps for the next zone. You can check for completion by going to the clusters page and checking for the capacity and utilization data for the time period specified.

Server Diagnostics

Under Diagnostics for a server, you can view the status of ManageIQ workers running on the server, set log collection setting for only that server, and view the server’s current ManageIQ and audit logs.

Workers

The Workers tab enables you to see the status of and restart ManageIQ workers.

You can see additional information on and restart the following items:

  • C & U Metrics Collectors that collects capacity and utilization data.

  • C & U Metrics Processors, which processes the collected capacity and utilization data.

  • Event Handlers put events from the Event Monitor into the VMDB and starts ManageIQ processes if needed base on that information.

  • Event Monitors that communicate with the external cloud provider to deliver up to date event information.

  • Generic Workers that perform long running and priority processes.

  • Priority Workers that perform high priority, short processes.

  • Schedule Workers that maintains any items that run on a schedule.

  • Session Broker that maintains a single connection to the cloud providers .

  • Refresh Workers that runs the refresh processes.

  • Reporting Workers that generate reports.

  • SmartProxy Workers that run SmartState Analyses on virtual machine.

  • User Interface Worker that allows users access to the console.

  • Web Services Worker that maintains ManageIQ Web services.

  • VM Analysis Collectors that run and process SmartState Analyses on virtual machines.

Reloading Worker Display

To reload worker display:

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Select the server that you want to view.

  4. Click the Workers tab.

  5. Click 2106 (Refresh Current Workers display).

Restarting a Worker

To restart a worker:

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Select the server that you want to view.

  4. Click on the Workers tab.

  5. Click on the worker you want to restart.

  6. Click 1847 (Configuration), then 2102 (Restart selected worker).

  7. Click OK.

Server and Audit Logs
Collecting Server Logs and Configuration Files

While you can designate a central location to collect logs for all servers in a specific zone, you can override those values for a specific server. To do this, designate a log depot location to store the files.

Log depot options include:

  • Anonymous File Transfer Protocol (FTP)

  • File Transfer Protocol (FTP)

  • Network File System (NFS)

  • Red Hat Dropbox

  • Samba

See your network administrator to set up one of these shares. You also need a user that has write access to that location. Settings at the server level supersede the ones at the zone level.

Setting the Location of the Log Depot for a Specific Server

To set the location of the log depot for a specific server

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Select the server that you want to collect logs for.

  4. Click on the Collect Logs tab.

  5. Click 1851 (Edit Log Depot Settings for the selected Server).

  6. Select the Type of share.

    6254

  7. Using the fully qualified domain name (FQDN) of the depot server, type in the appropriate settings for the URI.

  8. Enter your user ID and password, then click Validate to confirm the settings.

  9. Click Save.

Collecting the Current Log Set of a Server

To Collect the Current Log Set of a Server

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Select the server that you want to collect logs for.

  4. Click on the Collect Logs tab.

  5. Click 2104 (Collect), then click 2104 (Collect current logs). All current log files in as well as configuration files are collected.

  6. Click OK. The status of the log retrieval shows in the ManageIQ console.

Collecting All Log Sets from a Server

To Collect All Log Sets from a Server

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Select the server that you want to collect logs for.

  4. Click Collect Logs.

  5. Click 2104 (Collect), then click 2104 (Collect all logs). All files in the logs directory as well as configuration files are collected.

  6. Click OK. The status of the log retrieval shows in the ManageIQ console.

Viewing the Server, Audit, and Production Logs

The server and audit logs roll over daily. The previous logs are stored as zipped files in the /var/www/miq/vmdb/log folder. The current logs can be easily viewed and downloaded from the settings menu; select Configuration Configuration, then click on the Diagnostics accordion.

Use the server log to see all actions taken by the server including communication with the SmartProxy and tasks.

Viewing the Server Log

To view the server log:

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Select the server that you want to view.

  4. Click CFME Log.

The ManageIQ server automatically retrieves the last 1000 lines of the log.

Reloading the Server Log

To reload the server log:

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Select the server that you want to view.

  4. Click CFME Log.

  5. Click 2106 (Reload the Log Display).

Downloading the Server Log

To download the server log:

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Select the server that you want to view.

  4. Click CFME Log.

  5. Click 2107 (Download the Entire EVM Log File).

Note:

Use the Audit Log to see changes to the user interface and authentication.

Viewing the Audit Log

To view the audit log:

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Select the server that you want to view.

  4. Click Audit Log.

The server automatically retrieves the last 1000 lines of the log.

Reloading the Audit Log

To reload the audit log:

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Select the server that you want to view.

  4. Click Audit Log.

  5. Click 2106 (Reload the Audit Log Display).

Downloading the Audit Log

To download the audit log:

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Select the server that you want to view.

  4. Click Audit Log.

  5. Click 2107 (Download the Entire Audit Log File).

Viewing the Production Log

Use the production log to see all actions performed using the console.

To view the production log:

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Select the server that you want to view.

  4. Click Production Log.

The ManageIQ server automatically retrieves the last 1000 lines of the log.

Reloading the Production Log

To reload the production log:

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Select the server that you want to view.

  4. Click Production Log.

  5. Click 2106 (Reload the Product Log Display).

Downloading the Production Log

To download the production log:

  1. Browse to Settings > Application Settings.

  2. Click on the Diagnostics accordion, then click the Zone that you want to view.

  3. Select the server that you want to view.

  4. Click Production Log.

  5. Click 2107 (Download the Production Log File).

Database Operations

Viewing Information on the VMDB

The Database accordion displays a summary of VMDB information, a list of all tables and indexes, settings for the tables, active client connection, and database utilization.

To view information on the VMDB:

  1. Browse to Settings > Application Settings.

  2. Click the Database accordion.

  3. Click VMDB in the tree view on the left.

  4. Click the appropriate tab to view the desired information:

    • Summary: displays statistics about the database.

    • Tables: displays a clickable list of all the tables.

    • Indexes: displays a clickable list of all the indexes.

    • Settings: displays a list of all tables, their descriptions, and other valuable Information.

    • Client Connections: displays all current connections to the VMDB.

    • Utilization: displays usage charges for the disk and index nodes.

Database Regions and Replication

Regions are used to create a central database for reporting and charting. Do not use the database at the top level for operational tasks such as SmartState analysis or capacity and utilization data collection. Assign each server participating in the region a unique number during the regionalization process, then set your subordinate regions to replicate to the top region.

Important

All ManageIQ databases in a multi-region deployment must use the same security key.

Creating a Region

In principle, a region is created when you set up your ManageIQ environment on the first appliance for the region. However, you can also create a region on an appliance where a database has already been set up. This process involves dropping and rebuilding the existing database to accommodate the new region number, and takes several minutes to complete.

Warning

Performing this procedure destroys any existing data and cannot be undone. Back up the existing database before proceeding. By default, new appliances are assigned region 0. Do not use this number when creating a region because duplicate region numbers can compromise the integrity of the data in the database.

  1. Log in to the appliance as the root user.

  2. Enter appliance_console, and press Enter.

  3. Press any key.

  4. Select Stop EVM Server Processes.

  5. Enter Y to confirm.

  6. Choose Configure Application.

  7. Enter a database region number that has not been used in your environment. Do not enter duplicate region numbers because this can corrupt the data.

  8. Enter Y to confirm.

  9. The menu reappears after all processes are complete.

  10. Select Start EVM Server Processes.

  11. Enter Y to confirm.

  12. Select Quit to exit the advanced settings menu.

Configuring Database Replication and Centralized Administration

To configure database replication, you must configure one ManageIQ instance to act as a global copy, and one or more other instances to act as remote copies. This database replication relationship can only be configured on ManageIQ instances that are of the same version. Configuring database replication in this version of ManageIQ automatically enables centralized administration, eliminating the need for further configuration. Centralized administration in ManageIQ supports life cycle management operations that can be initiated from the global copy and processed and executed on the remote copy.

Important

  • You must configure at least one remote copy before you can configure the global copy. Changes to the role of a ManageIQ instance take several minutes to take effect.

  • The region number must be unique on each ManageIQ instance where replication is configured. See Creating a Region for instructions on how to create a region.

  • Enabling the EvmRole-user_global_region role will only provide access to specific operations that can be performed on a global region.

Configuring a Remote Copy

Configure a ManageIQ instance to act as a remote copy from which data will be replicated to the global copy.

  1. Browse to Settings > Application Settings.

  2. Click the Settings accordion.

  3. Click the region where the instance is located.

  4. Click Replication.

  5. Select Remote from the Type list.

  6. Click Save.

Configuring the Global Copy

Configure a ManageIQ instance to act as the global copy to which data is replicated from the remote copies.

Add Subscription

  1. Click Configuration Configuration.

  2. Click the Settings accordion.

  3. Click the region where the instance is located.

  4. Click Replication.

  5. Select Global from the Type list.

  6. Click Add Subscription.

    1. Enter the name of the database on the remote copy in the Database field.

    2. Enter the IP address or fully qualified domain name of the remote copy in the Host field.

    3. Enter the name of a database user able to access the database in the Username field.

    4. Enter the password of the database user in the Password field.

    5. Enter the port by which the database is accessed in the Port field.

    6. In Actions, click Accept. You can also Update your subscription if required, or click the menu on the right in order to Validate or Discard.

  7. Click Save.

Note:

Once you configure a ManageIQ instance to act as a global copy, and one or more other instances to act as remote copies: * centralized administration is automatically enabled after the initial data sync is complete. * you will see the type of region you are logging into (global or remote) on the ManageIQ user interface login screen.

Database replication and centralized administration are now enabled on your instances. To open virtual machines of a remote region from the global region and perform required operations:

  1. Browse to menu: Compute < Infrastructure < Virtual Machines, then click VMs & Templates and select a virtual machine in the global region.

  2. In the Multi Region table on the summary screen, click Connect to VM in its Region to perform required operations in a new browser tab.

Resetting Database Replication

You can reset the replication relationship between the global copy and remote copies by temporarily removing and re-enabling the subscription from the global copy.

  1. Browse to Settings > Application Settings.

  2. Click the Settings accordion.

  3. Click the region where the instance is located.

  4. Click Replication.

  5. Remove the subscription:

    1. Click the actions button for the subscription to reset.

    2. Click OK.

  6. Click Save.

  7. Re-add the subscription:

    1. Click Add Subscription.

    2. Enter the name of the database on the remote copy in the Database field.

    3. Enter the IP address or fully qualified domain name of the remote copy in the Host field.

    4. Enter the name of a database user able to access the database in the Username field.

    5. Enter the password of the database user in the Password field.

    6. Enter the port by which the database is accessed in the Port field.

  8. Click Save.

Backing Up and Restoring ManageIQ in a Kubernetes Based Environment (podified)

Prerequisites:

Note: The operator adds labels and/or annotations to everything that needs to be backed up. You can easily and quickly backup only what is required. The operator will add annotations for restic volume backups for example, backup.velero.io/backup-volumes: <volume-label>.

  1. The backup label key can be configured by adding the following to the CR. The default label is applied if no value is specified for backupLabelName.
    ...
    spec:
      ...
      backupLabelName: <your label name>

  2. Create a backup by running the command:
    velero backup create <your backup name> --include-namespaces <your namespace> -l <your label name>=t

  3. In order to restore a backup, first ensure the ManageIQ CRD exists. Then, restore the backup by running the commands:
    oc new-project <your namespace>
    velero restore create --from-backup <your backup name>


Backing Up and Restoring a Database for an Appliance Based Environment

Running a Single Database Backup

ManageIQ supports database backups to Network File System (NFS), Samba, Amazon Web Service(AWS) S3 and OpenStack Swift storage.

Note:

Database backups to AWS S3 require valid AWS credentials to perform this operation.

To run a single database backup:

  1. Browse to Settings > Application Settings.

  2. Click the Diagnostics accordion and click the Region name.

  3. Click the Database tab.

  4. If you have created a backup schedule and want to use the same depot settings, select the schedule in the Backup Schedules box.

  5. If you do not want to use the settings from a backup schedule, select a type of server for storing the backups from the Type drop-down list in the Database Backup Settings box. You can use Network File System (NFS), Samba or AWS S3.

    • If you select Samba, enter the Depot Name, URI, Username, and a valid Password. Click Validate to check the settings.

    • If you select AWS S3, enter the Depot Name, URI, and select the AWS Region from the drop-down list. Enter the Username, and a valid Password. Click Validate to check the settings.

    • If you select OpenStack Swift, enter the Depot Name, URI, Security Protocol and API Port. Enter the Username, and a valid Password. Click Validate to check the settings.

    • If you select Network File System, enter the URI.

  6. Click Submit to run the database backup.

Restoring a Database from a Backup

If a database is corrupt or fails, restore it from a backup. You can restore a backup from a local file, NFS, or Samba.

To restore a database from a backup:

  1. Save the database backup file as /tmp/evm_db.backup. ManageIQ looks specifically for this file when restoring a database from a local backup.

  2. If you are restoring a database backup on a high availability environment, stop the replication manager service (repmgr13.service). This is not required in other ManageIQ configurations.

    # systemctl stop repmgr13.service

  3. Log in to the appliance as the root user.

  4. Enter appliance_console, and press Enter.

  5. Select Stop EVM Server Processes to stop processes on all servers that connect to this VMDB.

  6. Enter Y to confirm.

  7. After all processes are stopped, press Enter to return to the menu.

  8. Press Enter again to manually configure settings.

  9. Select Restore Database From Backup, then specify the location to restore the backup from in the Restore Database File menu:

    1. If you saved the database backup file locally as /tmp/evm_db.backup, select Local file. You can also restore from a Network File System (nfs) or Samba (smb).

    2. Specify the location of the backup file.

      Note:

      The appliance console menu may respond slowly if connections are open and the server is still shutting down. If this occurs, wait a minute and try again.

  10. Enter Y to keep the database backup after restoring from it. Enter N to delete it.

  11. Press Y to confirm.

  12. After the backup completes, press Enter to return to the menu.

  13. Press Enter again to manually configure settings.

  14. Select Start EVM Server Processes to restart all processes on servers that connect to this VMDB.

  15. Enter Y to confirm.

  16. If you are restoring a database backup on a high availability environment, start the replication manager service (repmgr13.service). This is not required in other ManageIQ configurations.

    # systemctl start repmgr13.service


Performing a Binary Backup and Restoring the Database

Preserve data at the file system level by performing a binary backup. This includes all databases, users and roles, and other objects.

Note:

This procedure uses the pg_basebackup utility to perform a remote database backup and create a full replacement of the PostgreSQL data directory, capturing the exact state of the database when the backup finishes. For more information on the pg_basebackup utility, see the PostgreSQL documentation.

Performing a Binary Backup

Create a binary backup and store it as a gzip tar file inside the ManageIQ backup directory.

A PostgreSQL superuser or user with *Replication* permissions are required to perform this procedure.
  1. SSH into the database server as the root user or provide PostgreSQL superuser credentials.

  2. Run the pg_basebackup command to create the backup:

    # pg_basebackup -X fetch -h hostname -U root -Ft -z -D filename


    Note:

    -h hostname specifies the IP address of the database server.

    -D filename specifies the name of the directory created to contain the backup.

Restoring a Database from the Binary Backup

Restore your PostgreSQL binary backup using the following steps. This process will require stopping both EVM and PostgreSQL services before restoring data.

  1. Copy the existing backup to the target VM:

    # scp filename/base.tar.gz root@hostname:/var/www/miq

  2. SSH to the target VM:

    # ssh root@hostname

  3. Stop both the EVM and PostgreSQL servers:

    # systemctl stop evmserverd
    # systemctl stop $APPLIANCE_PG_SERVICE

  4. Rename the existing data directory:

    # mv /var/lib/pgsql/data /var/lib/pgsql/data.backup

  5. Create a clean data directory:

    # mkdir /var/lib/pgsql/data

  6. Unzip the tar file to the new directory:

    # tar -xzf /var/www/miq/base.tar.gz -C /var/lib/pgsql/data

  7. Correct permissions:

    # chown postgres:postgres /var/lib/pgsql/data
    # chmod 700 /var/lib/pgsql/data

  8. Restart the PostgreSQL and EVM servers:

    # systemctl start $APPLIANCE_PG_SERVICE
    # systemctl start evmserverd


Running Database Garbage Collection

The database server collects garbage automatically, but Red Hat may occasionally direct you to run database garbage collection manually in order to reclaim unused space in your VMDB.

To run database garbage collection:

  1. Browse to Settings > Application Settings.

  2. Click the Diagnostics accordion and click the Region name.

  3. Click the Database tab.

  4. In the Run Database Garbage Collection Now box, click Submit.

Changing the Database Password

Use the following procedures to change the password on appliances containing an internal database, and on worker appliances.

To change the password for an external database, use the procedure in Changing the Password on the Worker Appliances.

Note:

See Appliance Types in the Deployment Planning Guide for a summary of different types of appliances.

Changing the Password on the Database Appliance

ManageIQ provides a default database password for the internal PostgreSQL database.

To change the password, you need to stop the ManageIQ service, change the password for the PostgreSQL database, run a command to change the password in the configuration file that evmserverd uses to access the server, and restart the ManageIQ appliance.

  1. Stop the ManageIQ service:

    1. SSH into the appliance.

    2. To stop the ManageIQ service, run the following command:

      service evmserverd stop

  2. Use pgadmin to change the password for your ManageIQ database (default is vmdb_production). If you do not have pgadmin, you can change the password by running:

    psql -U root -d vmdb_production

    1. At the vmdb# prompt, type:

      ALTER USER root WITH PASSWORD 'newpassword';

    2. To exit psql, type:

      \q

  3. Change the password in the configuration file that evmserverd uses to access the server:

    /var/www/miq/vmdb/tools/fix_auth.rb --databaseyml --password newpassword

  4. Restart the ManageIQ service:

    service evmserverd start

  5. Verify that you can log in to the ManageIQ console.

Changing the Password on the Worker Appliances
  1. Stop the ManageIQ service:

    1. SSH into the appliance.

    2. To stop the ManageIQ service, run the following command:

      service evmserverd stop

  2. Change the password in the configuration file that evmserverd uses to access the server:

    /var/www/miq/vmdb/tools/fix_auth.rb --databaseyml --password newpassword

  3. Restart the ManageIQ service:

    service evmserverd start

    In a high availability environment, if using the same PostgreSQL user for replication, you must also change the password in the `/var/lib/pgsql/.pgpass` file on every database node. Additionally, if the password for the user being used for region-to-region replication is changing, users must also change the password in the replication subscription screen. See [Configuring the Global Copy](#configuring-the-global-copy).

Adding a New Appliance to an Existing Region with a Non-default Password

  1. Create the new appliance.

  2. Start the appliance, but do not go into any of the configuration options, instead SSH into the new appliance.

  3. In the /var/www/miq/vmdb directory, create a file called REGION. Its only contents should be the number of the Region that it is joining. (You could also just copy the REGION file from the VMDB appliance.)

  4. Edit the database.yml file in the /var/www/miq/vmdb directory. (You may want to save from the original.)

    1. Replace the contents of the “production” section with the contents of the “base” section.

    2. Edit the “host” parameter to match the IP of the appliance hosting the VMDB.

    3. Save the new database.yml.

  5. Run the following command to change the password in the configuration file that evmserverd uses to access the server:

    /var/www/miq/vmdb/tools/fix_auth.rb --databaseyml --password newpassword

  6. Restart the new worker appliance:

    service evmserverd restart


Creating a Database Dump

Creating a database dump from the appliance console can be used to provide additional information when raising a support case. Options exist to generate a database dump excluding specified tables and to split the database dump into multiple parts.

Database dumps require name or location information based on the Dump Output File Name selection:


Local File Location
Network File System (NFS) Location
Samba (SMB) Location
Amazon S3 Name
File Transfer Protocol (FTP) Location
ftp to dropbox.redhat.com Name

To create a database dump:

  1. SSH into the appliance console as root.

  2. Press any key to continue.

  3. Type appliance_console and press Enter.

  4. From the Advanced Settings, select option 5, Create a Database Dump.

  5. Select a Dump Output File Name from the list.

  6. Enter the location or name to save the dump file to.

  7. (Optional) Select tables to exclude from the dump:

    1. Enter Y to exclude tables. Select N to skip the operation.

    2. Enter the table names in a space-separated list:

      metrics_* vim_performance_states event_streams

  8. (Optional) Split the database dump output into multiple parts:

    1. Enter Y to split the database dump output. Select N to skip the operation.

    2. Enter the size to split by, ex 250M or 1G.

The database dump is created and sent to the specified location.

SmartProxies

The embedded SmartProxy can analyze virtual machines that are registered to a host and templates that are associated with a provider.

Installing the SmartProxy from the Console

The server comes with one SmartProxy version already available. It can also be installed on an ESX Server version 3.0.2, 3.5 or 4.

Contact Red Hat before installing a new SmartProxy on an ESX Server.

Requirements:

  • On ESX, SSH (Secure Shell) must be enabled. This is usually port 22.

  • 300 MB free disk space to install and run the SmartProxy.

  • Administrator or root credentials.

  • The host must already be in the VMDB either by discovery or manually.

Entering Credentials and Operating System for the Target Host

Set the credentials and operating system for the target host to prepare for the installation of SmartProxy.

To Enter Credentials and Operating System for the Target Host:

  1. Browse to menu: Compute > Infrastructure > Hosts.

  2. Select the host you want to edit.

  3. Click Configuration, then 1851 Edit Selected items.

  4. In Credentials, click the Default tab and enter your login credentials. If you are using domain credentials, the format for User ID must be in the format of <domainname>\<username>. For ESX hosts, if SSH login is disabled for the default user, click the Remote Login tab and enter a user with remote login access.

    2112

    If the target is a Windows host, disconnect all network connections between the Windows proxy and the target. If an existing connection uses a different set of credentials than those set in the console, the installation may fail.
  5. Click Validate to verify the credentials.

  6. If you added the host manually instead of Host Discovery or Provider Refresh finding it, select the host’s operating system from the Host Platform drop-down box to ensure the host platform is available.

  7. Click Save.

When remotely installing on Windows hosts, the SmartProxy file is first copied to a Windows proxy. That computer then installs the file to the target host. The Windows proxy is the same as when you select the Default Repository SmartProxy box. You can locate this by navigating to the settings menu and selecting Configuration, then clicking on the desired server, then the Server tab, and exploring the Server Control area.

About

Click the question mark icon (questionmark) at the top right of the ManageIQ user interface to open a dropdown menu with links to ManageIQ documentation and the Red Hat Customer Portal, and for information about the current ManageIQ session.

  • Click Documentation to open a list of guides. Click the title of a document to view it as a PDF in a new web browser tab.

  • Click Red Hat Customer Portal to open the Red Hat Customer Portal in a new web browser tab.

  • Click About to open a pop-up window showing information about the ManageIQ version and the session of the logged-in user.

Default Roles

This section outlines the default roles provided in ManageIQ and the product features to which they are granted access.

EvmRole-super_administrator

The EvmRole-super_administrator is granted access to the following product features.

Product Feature
everything

EvmRole-super_administrator

EvmRole-administrator

The EvmRole-administrator is granted access to the following product features.

Product Feature
about
all_vm_rules
automation_manager
embedded_automation_manager
availability_zone
host_aggregate
compute
flavor
floating_ip
chargeback
catalog
cloud_network
cloud_object_store_container
cloud_object_store_object
control_explorer
dashboard
datacenter
storage
storage_pod
ems_cloud
ems_network
ems_cluster
ems_infra
ems_infra_admin_ui
ems_physical_infra
container_dashboard
ems_container
ems_container_deployment
configuration_job
container_project
container_route
container_service
container_replicator
container_group
container
container_node
persistent_volume
container_build
container_image_registry
container_image
container_topology
cloud_topology
infra_topology
host
infra_networking
miq_ae_class_explorer
miq_ae_customization_explorer
miq_ae_class_import_export
miq_ae_class_log
miq_ae_class_simulation
miq_task_all_ui
miq_task_my_ui
my_settings
policy_simulation
policy_log
miq_report
miq_request
miq_template
orchestration_stack
physical_server
physical_infra_topology
planning
policy_import_export
provider_foreman_explorer
pxe
resource_pool
security_group
service
timeline
usage
utilization
vm_explorer
vm
vm_cloud_explorer
vm_infra_explorer
sui_services
sui_notifications

EvmRole-administrator

EvmRole-approver

The EvmRole-approver is granted access to the following product features.

Product Feature
about
all_vm_rules
compute
chargeback
chargeback_reports
customization_template_view
iso_datastore_view
control_explorer
dashboard
ems_cluster_show
ems_cluster_show_list
ems_cluster_perf
ems_cluster_tag
ems_cluster_timeline
ems_infra_show
ems_infra_show_list
ems_infra_tag
ems_infra_timeline
ems_physical_infra_console
ems_physical_infra_tag
ems_physical_infra_view
ems_physical_infra_tag
host_show
host_show_list
host_perf
host_tag
host_timeline
my_settings_default_views
my_settings_time_profiles
my_settings_visuals
miq_report_run
miq_report_saved_reports
miq_report_schedules
miq_report_view
miq_request_control
miq_request_view
miq_task_my_ui
miq_template_check_compliance
miq_template_perf
miq_template_policy_sim
miq_template_show
miq_template_show_list
miq_template_snapshot
miq_template_tag
miq_template_timeline
physical_infra_topology_view
physical_server_view
policy_log
policy_simulation
pxe_image_type_view
pxe_server_view
resource_pool_show
resource_pool_show_list
resource_pool_tag
service_view
storage_show
storage_show_list
storage_pod_show
storage_pod_show_list
storage_perf
storage_tag
timeline
usage
vm_check_compliance
vm_console
vm_webmks_console
vm_cloud_explorer
vm_explorer
vm_infra_explorer
vm_vnc_console
vm_vmrc_console
cockpit_console
vm_perf
vm_policy_sim
vm_show
vm_show_list
vm_snapshot
vm_tag
vm_timeline
vm_chargeback
sui_services_view
sui_vm_details_view
sui_vm_console
sui_vm_web_console
sui_vm_tags
sui_orders_view
sui_notifications

EvmRole-approver

EvmRole-auditor

The EvmRole-auditor is granted access to the following product features.

Product Feature
about
automation_manager
embedded_automation_manager
compute
chargeback
chargeback_reports
customization_template_view
iso_datastore_view
control_explorer
dashboard
ems_cluster_view
ems_cluster_tag
ems_infra_view
ems_infra_tag
ems_infra_check_compliance
ems_physical_infra_console
ems_physical_infra_tag
ems_physical_infra_view
host_show
host_show_list
host_perf
infra_networking_view
infra_networking_tag
instance_view
instance_check_compliance
instance_policy_sim
instance_tag
image_view
image_check_compliance
image_policy_sim
image_tag
iso_datastore_view
host_view
host_check_compliance
host_tag
miq_task_my_ui
my_settings_default_views
my_settings_time_profiles
my_settings_visuals
miq_report_run
miq_report_saved_reports
miq_report_schedules
miq_report_view
miq_template_view
miq_template_check_compliance
miq_template_policy_sim
miq_template_snapshot_view
miq_template_tag
physical_infra_topology_view
physical_server_view
planning
policy_log
policy_profile
policy_simulation
pxe_image_type_view
pxe_server_view
resource_pool_show
resource_pool_show_list
resource_pool_tag
service_view
storage_show
storage_show_list
storage_perf
storage_tag
storage_pod_show
storage_pod_show_list
timeline
usage
utilization
vm_view
vm_check_compliance
vm_compare
vm_console
vm_drift
vm_webmks_console
vm_cloud_explorer
vm_explorer
vm_infra_explorer
vm_vnc_console
vm_vmrc_console
cockpit_console
vm_perf
vm_show
vm_show_list
vm_snapshot_view
vm_tag
vm_timeline
vm_chargeback
sui_services_view
sui_vm_details_view
sui_vm_console
sui_vm_web_console
sui_vm_tags
sui_notifications

EvmRole-auditor

EvmRole-desktop

The EvmRole-desktop is granted access to the following product features.

Product Feature
about
all_vm_rules
automation_manager
compute
dashboard
ems_physical_infra
miq_request_admin
miq_request_view
miq_template_clone
miq_template_compare
miq_template_drift
miq_template_edit
miq_template_refresh
miq_template_miq_request_new
miq_template_perf
miq_template_publish
miq_template_show
miq_template_show_list
miq_template_timeline
my_settings_default_views
my_settings_time_profiles
my_settings_visuals
physical_server
physical_infra_topology
physical_server_view
provider_foreman_explorer
vm_clone
vm_compare
vm_console
vm_webmks_console
vm_cloud_explorer
vm_explorer
vm_infra_explorer
vm_vnc_console
vm_vmrc_console
cockpit_console
vm_drift
vm_edit
vm_refresh
vm_reset
vm_guest_restart
vm_miq_request_new
vm_perf
vm_publish
vm_show
vm_show_list
vm_guest_shutdown
vm_start
vm_stop
vm_suspend
vm_pause
vm_shelve
vm_shelve_offload
vm_timeline
vm_chargeback
sui_services_view
sui_vm_details_view
sui_vm_console
sui_vm_web_console
sui_vm_start
sui_vm_stop
sui_vm_suspend
sui_orders_view
sui_orders_operations
sui_notifications

EvmRole-desktop

EvmRole-operator

The EvmRole-operator is granted access to the following product features.

Product Feature
about
all_vm_rules
automation_manager
embedded_automation_manager
compute
chargeback
chargeback_reports
dashboard
datastore
ems_cluster_analyze
ems_cluster_compare
ems_cluster_drift
ems_cluster_show
ems_cluster_show_list
ems_cluster_perf
ems_cluster_tag
ems_cluster_timeline
ems_infra_new
ems_infra_delete
ems_infra_discover
ems_infra_edit
ems_infra_refresh
ems_infra_scale
ems_infra_show
ems_infra_show_list
ems_infra_tag
ems_infra_timeline
ems_physical_infra_new
ems_physical_infra_console
ems_physical_infra_delete
ems_physical_infra_discover
ems_physical_infra_edit
ems_physical_infra_refresh
ems_physical_infra_tag
ems_physical_infra_view
physical_server_view
physical_infra_topology_view
host_new
host_analyze
host_compare
host_discover
host_drift
host_edit
host_refresh
host_show
host_show_list
host_perf
host_tag
host_timeline
my_settings_default_views
my_settings_time_profiles
my_settings_visuals
miq_report_run
miq_report_saved_reports
miq_report_schedules
miq_report_view
miq_task_my_ui
miq_template_analyze
miq_template_check_compliance
miq_template_compare
miq_template_drift
miq_template_edit
miq_template_perf
miq_template_refresh
miq_template_show
miq_template_show_list
miq_template_snapshot
miq_template_sync
miq_template_tag
miq_template_timeline
pxe
resource_pool_show
resource_pool_show_list
resource_pool_tag
service_view
provider_foreman_explorer
storage_delete
storage_scan
storage_show
storage_show_list
storage_perf
storage_tag
timeline
usage
vm_analyze
vm_check_compliance
vm_collect_running_processes
vm_compare
vm_console
vm_webmks_console
vm_cloud_explorer
vm_explorer
vm_infra_explorer
vm_vnc_console
vm_vmrc_console
cockpit_console
vm_drift
vm_edit
vm_perf
vm_refresh
vm_reset
vm_guest_restart
vm_show
vm_show_list
vm_guest_shutdown
vm_snapshot
vm_start
vm_stop
vm_suspend
vm_pause
vm_shelve
vm_shelve_offload
vm_sync
vm_tag
vm_timeline
vm_chargeback
sui_services_view
sui_vm_details_view
sui_vm_console
sui_vm_web_console
sui_vm_tags
sui_vm_start
sui_vm_stop
sui_vm_suspend
sui_notifications

EvmRole-operator

EvmRole-security

The EvmRole-security is granted access to the following product features.

Product Feature
about
all_vm_rules
compute
chargeback
chargeback_reports
control_explorer
dashboard
datastore
ems_cluster_show
ems_cluster_show_list
ems_cluster_perf
ems_cluster_tag
ems_cluster_timeline
ems_infra_show
ems_infra_show_list
ems_infra_tag
ems_infra_timeline
ems_physical_infra_tag
ems_physical_infra_view
physical_server_timeline
host_show
host_show_list
host_perf
host_tag
host_timeline
my_settings_default_views
my_settings_time_profiles
my_settings_visuals
miq_report_run
miq_report_saved_reports
miq_report_schedules
miq_report_view
miq_task_my_ui
miq_template_check_compliance
miq_template_compare
miq_template_drift
miq_template_perf
miq_template_policy_sim
miq_template_show
miq_template_show_list
miq_template_snapshot_add
miq_template_snapshot_delete
miq_template_snapshot_delete_all
miq_template_snapshot_revert
miq_template_tag
miq_template_timeline
policy_log
policy_simulation
resource_pool_show
resource_pool_show_list
resource_pool_tag
service_view
storage_show
storage_show_list
storage_perf
storage_tag
timeline
usage
vm_check_compliance
vm_compare
vm_drift
vm_cloud_explorer
vm_explorer
vm_infra_explorer
vm_perf
vm_policy_sim
vm_show
vm_show_list
vm_snapshot_add
vm_snapshot_delete
vm_snapshot_delete_all
vm_snapshot_revert
vm_tag
vm_timeline
vm_chargeback
sui_services_view
sui_vm_details_view
sui_vm_snapshot_create
sui_vm_snapshot_delete
sui_vm_tags
sui_notifications

EvmRole-security

EvmRole-support

The EvmRole-support is granted access to the following product features.

Product Feature
about
all_vm_rules
compute
chargeback
chargeback_reports
control_explorer
dashboard
datastore
ems_cluster_show
ems_cluster_show_list
ems_cluster_perf
ems_cluster_tag
ems_cluster_timeline
ems_infra_show
ems_infra_show_list
ems_infra_tag
ems_infra_timeline
ems_physical_infra_console
ems_physical_infra_tag
ems_physical_infra_view
host_show
host_show_list
host_perf
host_tag
host_timeline
miq_task_my_ui
my_settings_default_views
my_settings_time_profiles
my_settings_visuals
miq_report_run
miq_report_saved_reports
miq_report_schedules
miq_report_view
miq_template_check_compliance
miq_template_compare
miq_template_drift
miq_template_perf
miq_template_policy_sim
miq_template_show
miq_template_show_list
miq_template_snapshot
miq_template_tag
miq_template_timeline
physical_infra_topology_view
physical_server_view
policy_log
policy_simulation
resource_pool_show
resource_pool_show_list
resource_pool_tag
service_view
storage_show
storage_show_list
storage_perf
storage_tag
timeline
usage
vm_check_compliance
vm_collect_running_processes
vm_console
vm_webmks_console
vm_cloud_explorer
vm_explorer
vm_infra_explorer
vm_vnc_console
vm_vmrc_console
cockpit_console
vm_compare
vm_drift
vm_perf
vm_policy_sim
vm_show
vm_show_list
vm_snapshot
vm_tag
vm_timeline
vm_chargeback
sui_services_view
sui_vm_details_view
sui_vm_console
sui_vm_web_console
sui_vm_tags
sui_notifications

EvmRole-support

EvmRole-user

The EvmRole-user is granted access to the following product features.

Product Feature
about
all_vm_rules
compute
chargeback
chargeback_reports
dashboard
datastore
ems_cluster_show
ems_cluster_show_list
ems_cluster_perf
ems_cluster_tag
ems_cluster_timeline
ems_infra_show
ems_infra_show_list
ems_infra_tag
ems_infra_timeline
ems_physical_infra_console
ems_physical_infra_show
ems_physical_infra_show_list
ems_physical_infra_tag
ems_physical_infra_timeline
host_show
host_show_list
host_perf
host_tag
host_timeline
miq_task_my_ui
my_settings_default_views
my_settings_time_profiles
my_settings_visuals
miq_report_run
miq_report_saved_reports
miq_report_schedules
miq_report_view
miq_request_admin
miq_request_view
miq_template_check_compliance
miq_template_compare
miq_template_drift
miq_template_perf
miq_template_show
miq_template_show_list
miq_template_snapshot
miq_template_tag
miq_template_timeline
physical_infra_topology_view
physical_server_view
resource_pool_show
resource_pool_show_list
resource_pool_tag
service_view
storage_show
storage_show_list
storage_perf
storage_tag
timeline
usage
vm_check_compliance
vm_console
vm_webmks_console
vm_cloud_explorer
vm_explorer
vm_infra_explorer
vm_vnc_console
vm_vmrc_console
cockpit_console
vm_compare
vm_drift
vm_perf
vm_show
vm_show_list
vm_snapshot
vm_tag
vm_timeline
vm_chargeback
sui_services_view
sui_vm_details_view
sui_vm_console
sui_vm_web_console
sui_vm_tags
sui_orders_view
sui_orders_operations
sui_notifications

EvmRole-user

EvmRole-user_limited_self_service

The EvmRole-user_limited_self_service is granted access to the following product features.

Product Feature
about
all_vm_rules
catalog_items_view
compute
miq_request_admin
miq_request_view
my_settings_default_views
my_settings_visuals
service_edit
service_delete
service_reconfigure
service_tag
service_retire_now
service_view
svc_catalog_provision
vm_clone
vm_cloud_explorer
vm_filter_accord
vm_guest_restart
vm_guest_shutdown
vm_infra_explorer
vm_miq_request_new
vm_publish
vm_reset
vm_retire_now
vm_show
vm_show_list
vm_snapshot_view
vm_start
vm_stop
vm_suspend
vm_pause
vm_shelve
vm_shelve_offload
vm_tag
sui_core
sui_services
sui_vm
sui_orders
sui_svc_catalog_view
sui_svc_catalog_cart
sui_cart

EvmRole-user_limited_self_service

EvmRole-user_self_service

The EvmRole-user_self_service is granted access to the following product features.

Product Feature
about
all_vm_rules
automation_manager
embedded_automation_manager
ems_physical_infra_console
catalog_items_view
compute
miq_template_clone
miq_template_drift
miq_template_edit
miq_template_perf
miq_template_refresh
miq_template_show
miq_template_show_list
miq_template_snapshot
miq_template_sync
miq_template_tag
miq_template_timeline
my_settings_default_views
my_settings_visuals
miq_request_admin
miq_request_view
provider_foreman_explorer
service_edit
service_delete
service_reconfigure
service_tag
service_retire_now
service_view
svc_catalog_provision
vm_console
vm_webmks_console
vm_clone
vm_cloud_explorer
vm_console
vm_webmks_console
vm_drift
vm_edit
vm_filter_accord
vm_guest_restart
vm_guest_shutdown
vm_infra_explorer
vm_miq_request_new
vm_perf
vm_publish
vm_refresh
vm_reset
vm_retire_now
vm_show
vm_show_list
vm_snapshot
vm_start
vm_stop
vm_suspend
vm_pause
vm_shelve
vm_shelve_offload
vm_sync
vm_tag
vm_timeline
vm_chargeback
vm_vmrc_console
vm_vnc_console
cockpit_console
sui

EvmRole-user_self_service

EvmRole-vm_user

The EvmRole-vm_user is granted access to the following product features.

Product Feature
about
all_vm_rules
automation_manager
embedded_automation_manager
compute
miq_request_admin
miq_request_view
miq_template_analyze
miq_template_check_compliance
miq_template_clone
miq_template_drift
miq_template_edit
miq_template_perf
miq_template_show
miq_template_show_list
miq_template_snapshot
miq_template_sync
miq_template_tag
miq_template_timeline
my_settings_default_views
my_settings_visuals
provider_foreman_explorer
vm_analyze
vm_check_compliance
vm_clone
vm_cloud_explorer
vm_collect_running_processes
vm_compare
vm_console
vm_webmks_console
vm_drift
vm_explorer
vm_guest_restart
vm_guest_shutdown
vm_infra_explorer
vm_miq_request_new
vm_perf
vm_policy_sim
vm_publish
vm_refresh
vm_reset
vm_retire_now
vm_show
vm_show_list
vm_snapshot
vm_start
vm_stop
vm_suspend
vm_pause
vm_shelve
vm_shelve_offload
vm_sync
vm_tag
vm_timeline
vm_chargeback
vm_vmrc_console
vm_vnc_console
cockpit_console
sui_vm_details_view
sui_vm_console
sui_vm_web_console
sui_vm_tags
sui_vm_retire
sui_vm_start
sui_vm_stop
sui_vm_suspend
sui_orders_view
sui_orders_operations
sui_notifications

EvmRole-vm_user

EvmRole-tenant_administrator

The EvmRole-tenant_administrator is granted access to the following product features.

Product Feature
about
automation_manager
embedded_automation_manager
availability_zone
host_aggregate
all_vm_rules
compute
cloud_network
cloud_subnet
flavor
floating_ip
chargeback
catalog
cloud_tenant
control_explorer
dashboard
datacenter
storage
ems_cloud
ems_network
ems_cluster
ems_infra
ems_physical_infra
host
load_balancer
miq_ae_class_explorer
miq_ae_customization_explorer
miq_ae_class_import_export
miq_ae_class_log
miq_ae_class_simulation
miq_task_all_ui
miq_task_my_ui
my_settings
network_port
network_router
policy_simulation
policy_log
miq_report
miq_request
miq_template
orchestration_stack
planning
policy_import_export
provider_foreman_explorer
pxe
rbac_group
rbac_role_view
rbac_tenant
rbac_user
resource_pool
security_group
service
timeline
usage
utilization
vm_explorer
vm
vm_cloud_explorer
vm_infra_explorer
sui_services
sui_notifications

EvmRole-tenant_administrator

EvmRole-tenant_quota_administrator

The EvmRole-tenant_quota_administrator is granted access to the following product features.

Product Feature
about
automation_manager
embedded_automation_manager
availability_zone
host_aggregate
all_vm_rules
flavor
compute
chargeback
catalog
cloud_tenant
control_explorer
dashboard
datacenter
storage
ems_cloud
ems_cluster
ems_infra
ems_physical_infra
host
miq_ae_class_explorer
miq_ae_customization_explorer
miq_ae_class_import_export
miq_ae_class_log
miq_ae_class_simulation
miq_task_all_ui
miq_task_my_ui
my_settings
policy_simulation
policy_log
miq_report
miq_request
miq_template
orchestration_stack
planning
policy_import_export
provider_foreman_explorer
pxe
rbac_tenant_view
rbac_tenant_manage_quotas
resource_pool
security_group
service
timeline
usage
utilization
vm_explorer
vm
vm_cloud_explorer
vm_infra_explorer
sui_services
sui_notifications

EvmRole-tenant_quota_administrator

EvmRole-consumption_administrator

The EvmRole-consumption_administrator is granted access to the following product features.

Product Feature
dashboard
chargeback
miq_report

EvmRole-consumption_administrator

EvmRole-container_administrator

The EvmRole-container_administrator is granted access to the following product features.

Product Feature
vms_filter_accord
instances_filter_accord
datacenter_controller
storage
storage_pod
dashboard
miq_report
consumption
chargeback
pictures
control_explorer
generic_object
generic_object_definition
my_settings
tasks
about
ems_container
container_group
container_node
container_replicator
container_image
container_image_registry
persistent_volume
container_build
container_template
container_service
container_route
container_project
container
container_topology
container_dashboard
ems_infra_dashboard
instance_view
vm_view
miq_cloud_networks
miq_arbitration_settings
miq_arbitration_rules
redhat_access_insights_admin
ems_container_ad_hoc_metrics
monitor
monitor_alerts
alert_status
alert_action
ems_infra
rbac_user
ops_settings

EvmRole-container_administrator

EvmRole-container_operator

The EvmRole-container_operator is granted access to the following product features.

Product Feature
vms_filter_accord
instances_filter_accord
dashboard_view
miq_report_saved_reports_view
miq_report_view
miq_report_control
chargeback_reports
my_settings
tasks
ems_container_view
ems_container_check_compliance
container_group_view
container_group_check_compliance
container_node_view
container_node_check_compliance
container_replicator_check_compliance
container_image_view
container_image_scan
container_image_check_compliance
container_image_registry_view
persistent_volume_view
container_build_view
container_template_view
container_service_view
container_route_view
container_project_view
container_filter_accord
container_view
container_control
container_topology
container_dashboard
instance_view
vm_view
ems_container_ad_hoc_metrics
monitor
monitor_alerts
alert_status
alert_action
ems_infra
rbac_user
ops_settings

EvmRole-container_operator

EvmRole-reader

The EvmRole-reader is granted access to the following product features.

Product Feature
auth_key_pair_cloud_view
automation_manager_configuration_script_view
automation_manager_configured_system_view
automation_manager_providers_view
availability_zone_view
catalog_items_view
cloud_network_view
cloudobject_store_container_view
cloud_object_store_object_view
cloud_subnet_view
cloud_tenant_view
cloud_topology
cloud_volume_backup_view
cloud_volume_snapshot_view
cloud_volume_view
configuration_job_view
configuration_script_view
configured_systems_filter_accord_view
container_build_view
container_dashboard
container_filter_accord
container_group_view
container_image_registry_view
container_image_view
container_node_view
container_project_view
container_replicator_view
container_route_view
container_service_view
container_template_view
container_topology
container_view
customization_template_view
dashboard_view
embedded_automation_manager_credentials_view
embedded_configuration_script_payload_view
embedded_configuration_script_source_view
ems_block_storage_view
ems_cloud_view
ems_cluster_view
ems_container_view
ems_infra_view
ems_physical_infra_view
ems_network_view
ems_object_storage_view
flavor_view
floating_ip_view
host_aggregate_view
host_view
image_view
infra_networking_view
infra_topology
instance_view
iso_datastore_view
load_balancer_view
miq_ae_class_log
miq_ae_domain_view
miq_report_saved_reports_view
miq_report_schedule_view
miq_report_view
miq_request_view
miq_template_snapshot_view
miq_template_view
my_settings
network_port_view
network_router_view
network_topology
orchestration_stack_view
orchestration_templates_view
persistent_volume_view
physical_infra_topology_view
physical_server_view
planning
policy_log
provider_foreman_view
pxe_image_type_view
pxe_server_view
rbac_group_view
rbac_role_view
rbac_tenant_view
rbac_user_view
redhat_access_insights_overview
resource_pool_view
security_group_view
service_view
st_catalog_view
storage_view
tasks
timeline
utilization
virtual_template_show
vm_cloud_explorer
vm_explorer
vm_infra_explorer
vm_snapshot_view
vm_view
sui_services_view
sui_orders_view
sui_notifications

EvmRole-reader
